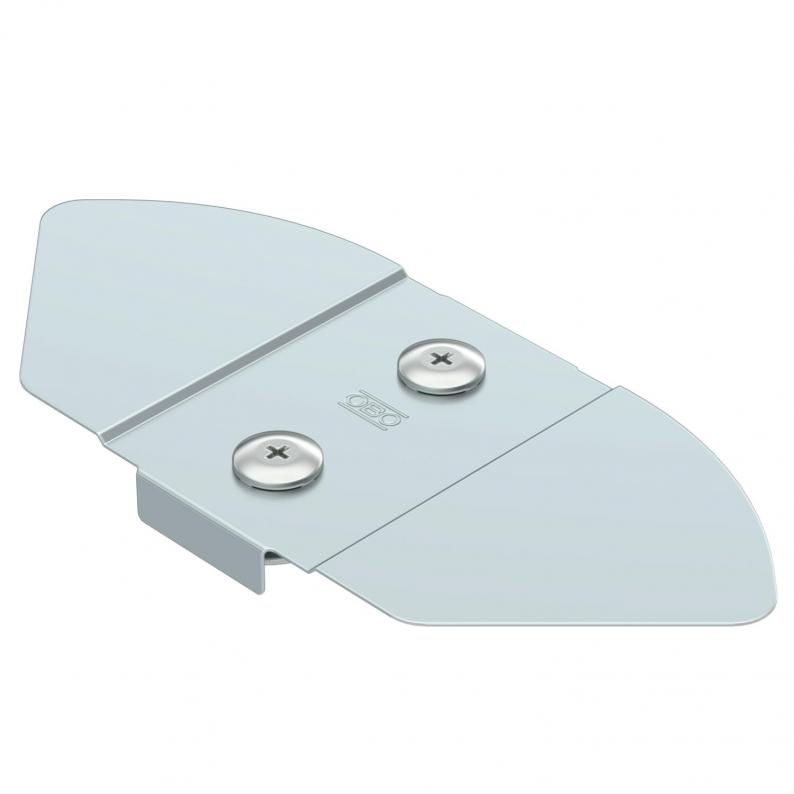

Cover, angle-adjustable bend FS

Cover, angle-adjustable bend FS

Type RBD W 100 FS
|
Item no. 6037500
|
EAN 4012197407476
Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

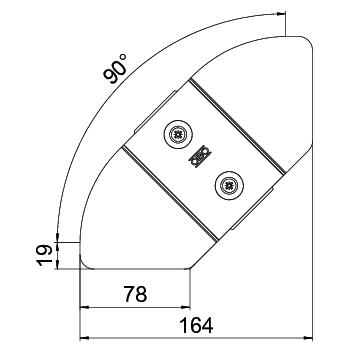

Dimensions

Width100 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness0,75 mm
Mandal kilit sayısı2 St.
Dönüş elemanı (L tipi bağlantı)Adjustable
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunno
Kablo kanalı için uygunyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
BoyutB100mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,8386 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Plate thickness
RBD W 100 FS
Item no.
6037500
Width
100
Plate thickness
0,75
RBD W 150 FS
Item no.
6037502
Width
150
Plate thickness
0,75
RBD W 200 FS
Item no.
6037504
Width
200
Plate thickness
0,75
RBD W 300 FS
Item no.
6037506
Width
300
Plate thickness
0,75
RBD W 400 FS
Item no.
6037508
Width
400
Plate thickness
1
RBD W 500 FS
Item no.
6037510
Width
500
Plate thickness
1
RBD W 600 FS
Item no.
6037512
Width
600
Plate thickness
1
