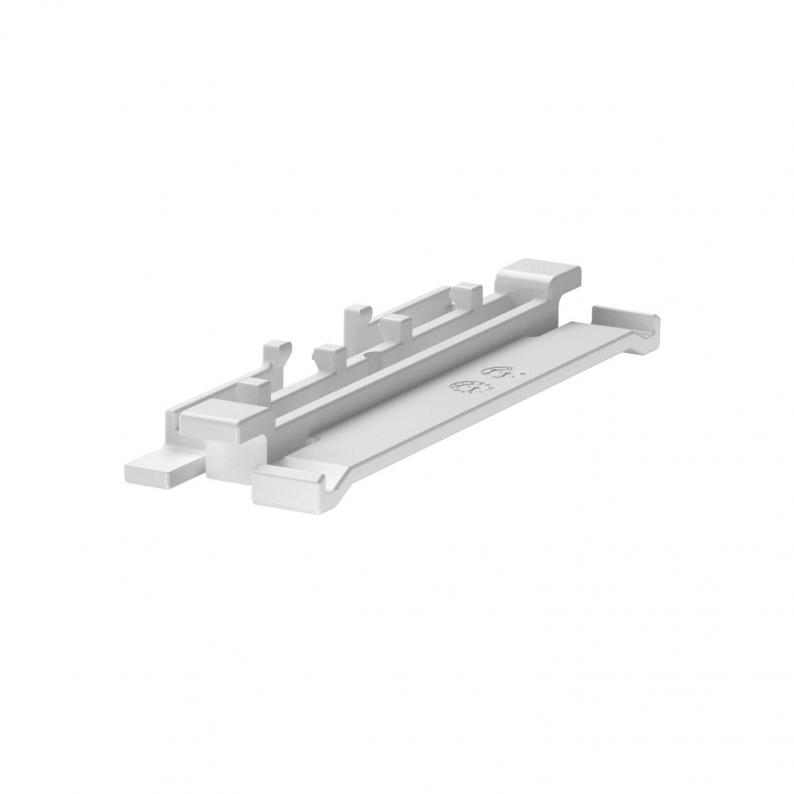

Cover clip for WDKH trunking, trunking width 110 mm
Type OTK H110
|Item no. 6176128
|EAN 4012195817901
Item no. / Type
6176128 / OTK H110

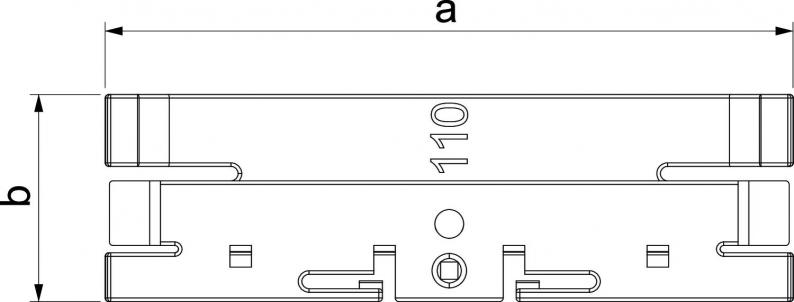

Dimension b
28,8 mm
Dimension a
95,7 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Cover clip for better and easier laying of lines in the WDKH trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
The cover fixing device can be moved along the entire length of the trunking.
Technical data
Dimensions
| Length | 28,8 mm |
|---|---|
| Width | 95,7 mm |
| Height | 10,5 mm |
| Dimension b | 28,8 mm |
| Dimension a | 95,7 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halojen İçermez | yes |
| kendiliğinden sönen | yes |
| Koruma sınıfı | IP30 |
| Potansiyel dengelemeli | no |
| Protection rating IK code | IK07. |
| Fastening type | Lockable |
| Kanal genişliği | 110 mm |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 96x29 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0892 kg CO2e / 1 Piece |
|---|
