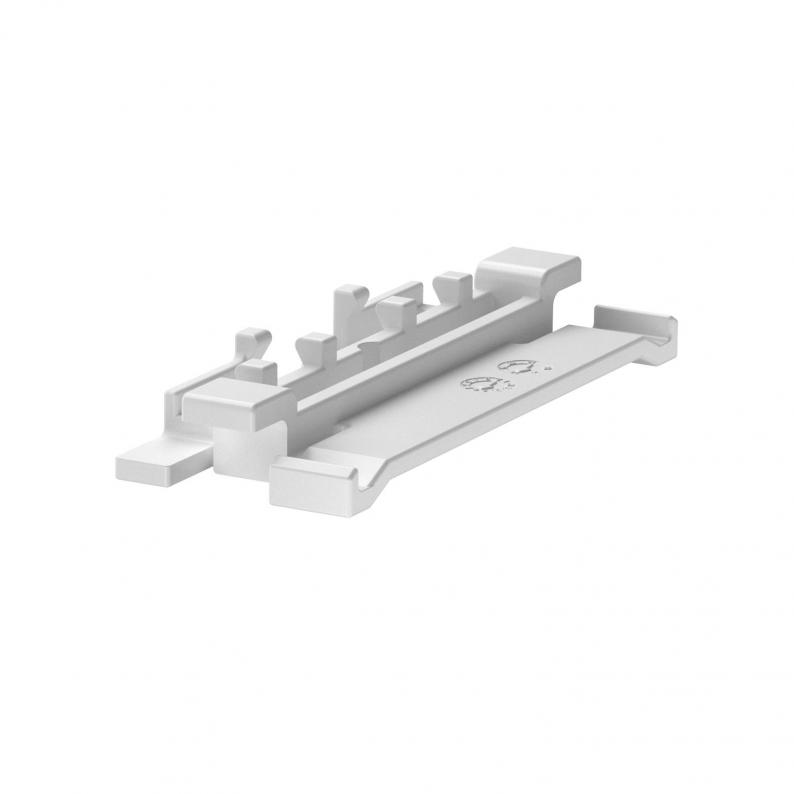

Cover clip for WDKH trunking, trunking width 90 mm

Cover clip for WDKH trunking, trunking width 90 mm

Type OTK H90
|
Item no. 6176125
|
EAN 4012195817895
Show all variants
Item no. / Type
6176125 / OTK H90
Dimension b
28,8 mm
Dimension a
75,7 mm

Smallest selling unit: 10 piece

piece

Description

Cover clip for better and easier laying of lines in the WDKH trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length28,8 mm
Width75,7 mm
Height10,5 mm
Dimension b28,8 mm
Dimension a75,7 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Self-extinguishingno
Protection ratingIP30
With equipotential bondingno
Protection rating IK codeIK07.
Fastening typeLockable
Cover width90 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension75,5x29
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010

Environmental Data

0,0689 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0689 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)
