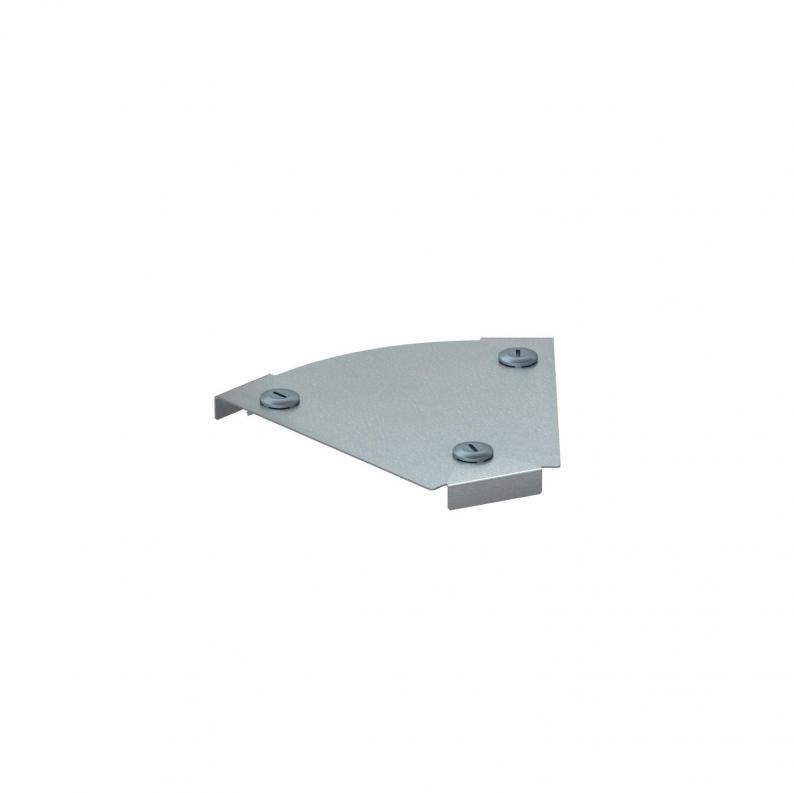

Cover for 45° Magic bend DD

Cover for 45° Magic bend DD

Type DFBM 45 150 DD
|
Item no. 7138402
|
EAN 4012195928843
Show all variants
Item no. / Type
Width
Plate thickness

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Cover for 45° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 35 mm
  • Kablo kanalı, kenar yüksekliği 60 mm
  • Kablo kanalı, kenar yüksekliği 85 mm
  • Kablo kanalı, kenar yüksekliği 110 mm

Technical data

Dimensions

Width150 mm
Dimension B150 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Dönüş elemanı (L tipi bağlantı)45°
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunno
Kablo kanalı için uygunyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
BoyutB=150mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
DFBM 45 150 DD
Item no.
7138402
Width
150
Plate thickness
1,25
DFBM 45 200 DD
Item no.
7138404
Width
200
Plate thickness
1,25
DFBM 45 300 DD
Item no.
7138406
Width
300
Plate thickness
1,25
DFBM 45 400 DD
Item no.
7138408
Width
400
Plate thickness
1,25
DFBM 45 500 DD
Item no.
7138410
Width
500
Plate thickness
1,25
DFBM 45 600 DD
Item no.
7138412
Width
600
Plate thickness
1,25
