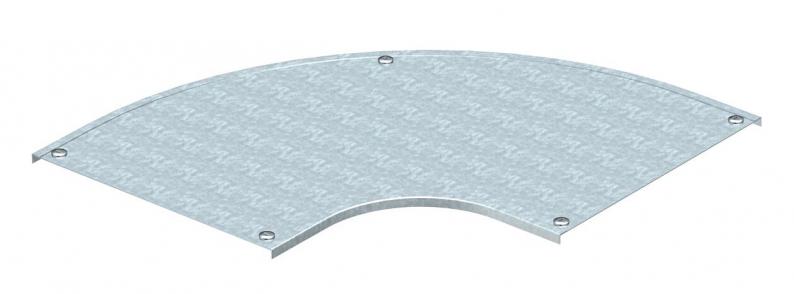

Cover for 90° bend FS

Type DFB 90 550 FS
|
Item no. 7129726
|
EAN 4012196251056
Item no. / Type
Width
Plate thickness

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Cover for 90° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 35 mm
  • Kablo kanalı, kenar yüksekliği 60 mm
  • Kablo kanalı, kenar yüksekliği 85 mm
  • Kablo kanalı, kenar yüksekliği 110 mm

Technical data

Dimensions

Width550 mm
Height35 mm
Dimension B550 mm
Dimension H15 mm
Dimension R148 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Mandal kilit sayısı5 St.
Dönüş elemanı (L tipi bağlantı)90°
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Hingedno
Change of directionHorizontal
Fastening typeSash lock
BoyutB550mm
SurfaceStrip galvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
DFB 90 550 FS
Item no.
7129726
Width
550
Plate thickness
1,25
DFB 90 600 FS
Item no.
7129734
Width
600
Plate thickness
1,25
