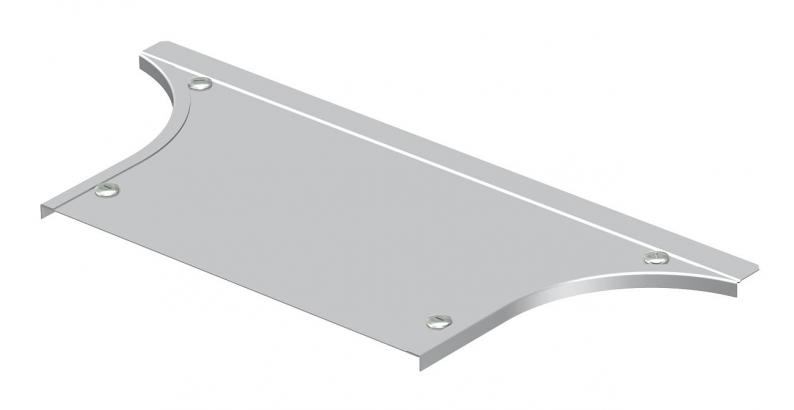

Cover for add-on tee 400‒600
Type DFAA 400 A2
|Item no. 7136935
|EAN 4012196257232
Item no. / Type
Width
Plate thickness
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description
Cover for add-on tee with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data
Dimensions
| Width | 400 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension R | 148 mm |
Technical data
| Wide-span version | no |
|---|---|
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| Mandal kilit sayısı | 4 St. |
| Material thickness | 1,25 mm |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | yes |
| Fastening type | Sash lock |
| Boyut | B400mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Plate thickness
Item no.
DFAA 400 A2
400
1,25
7136935
DFAA 500 A2
500
1,25
7136943
DFAA 600 A2
600
1,25
7136978
Width
DFAA 400 A2
Item no.
7136935
Width
400
Plate thickness
1,25
DFAA 500 A2
Item no.
7136943
Width
500
Plate thickness
1,25
DFAA 600 A2
Item no.
7136978
Width
600
Plate thickness
1,25
