Cover for cross-over FS
Type DFK 100 FS
|Item no. 7128614
|EAN 4012196249435
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

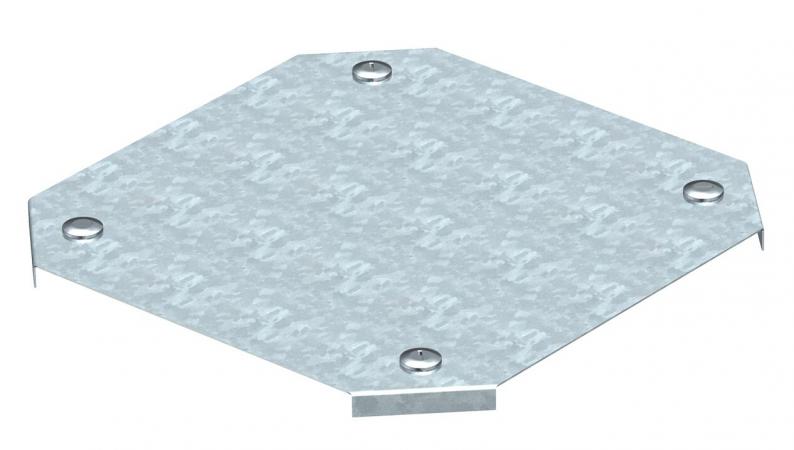

Cover for cross-over with pre-mounted turn buckles.
The cover can be used with fittings of all side heights.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
| Dimension H | 15 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Number of turn buckles | 4 St. |
| Material thickness | 1,25 mm |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Fastening type | Sash lock |
| Dimension | B100mm |
| Surface | Strip galvanised |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (1)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Item no.
DFK 100 FS
100
7128614
DFK 150 FS
150
7128622
Width
DFK 100 FS
Item no.
7128614
Width
100
DFK 150 FS
Item no.
7128622
Width
150
