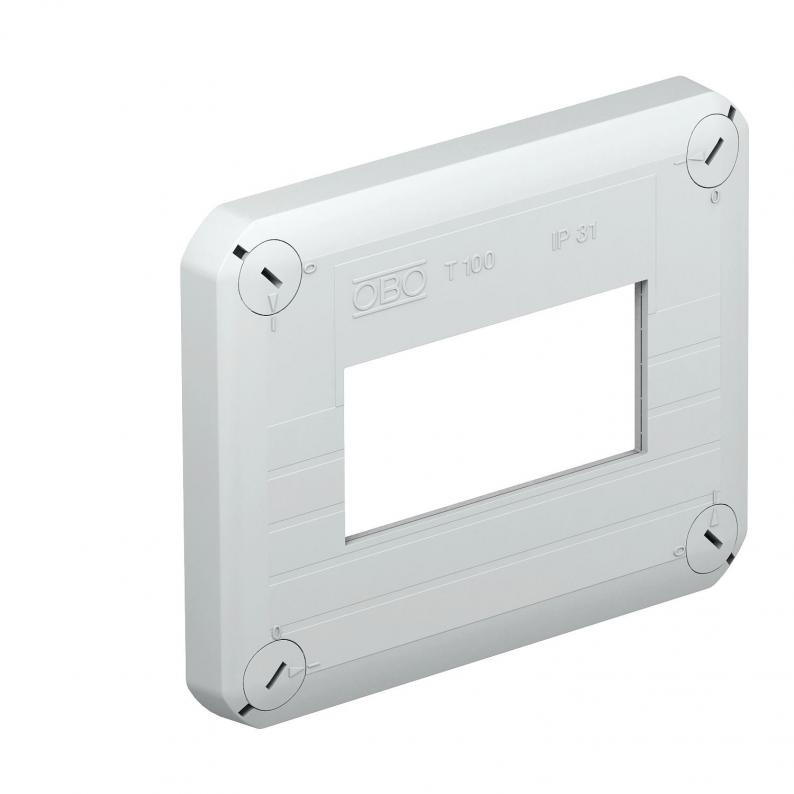

Cover for junction box T 100, perforated without Schuko sockets

Cover for junction box T 100, perforated without Schuko sockets

Type T 100 D MSD2A
|
Item no. 2007826
|
EAN 4012195654582
Show all variants
Item no. / Type
2007826 / T 100 D MSD2A

Smallest selling unit: 1 piece

piece

Description

Cover for T 100 propylene junction boxes. Depending on the type, opening for Modul 45 devices or with two or four Modul 45 protective contact sockets in white.
Cover can be lead-sealed, with labelling panel for double sockets.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 20
  • Installation electrotechnical expertise
  • Nominal voltage 500 V
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

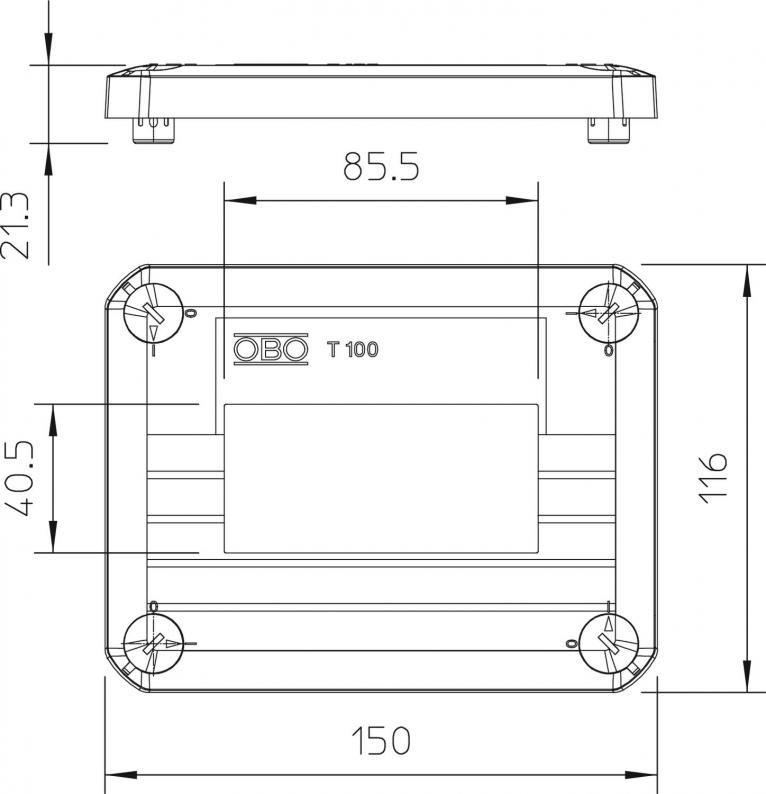

Dimensions

Length150 mm
Width116 mm
Height15 mm

Technical data

Version, concealed and cavity wall coverMounting lid
ShapeRectangular
Dimension150x116x15
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,4591 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,4591 kg CO2e / 1 Piece
