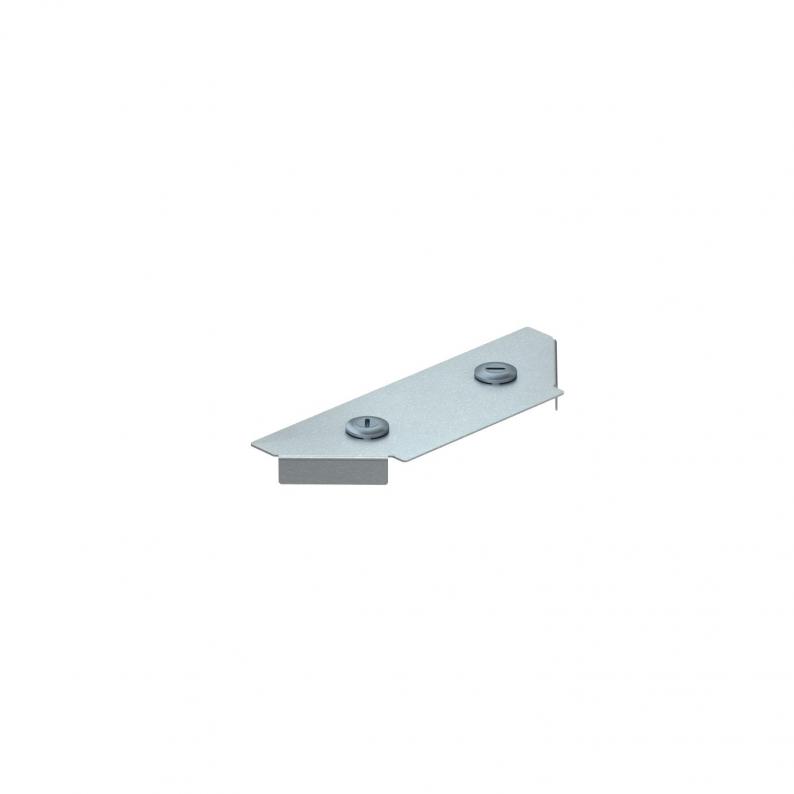

Cover for Magic add-on tee DD

Cover for Magic add-on tee DD

Type DFAAM 100 DD
|
Item no. 7138680
|
EAN 4012195930655
Show all variants
Item no. / Type
Width
Plate thickness

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Cover for add-on tee with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm

Technical data

Dimensions

Width100 mm
Dimension B100 mm

Technical data

Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Material thickness1,25 mm
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
DimensionB=100mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
DFAAM 100 DD
Item no.
7138680
Width
100
Plate thickness
1,25
DFAAM 150 DD
Item no.
7138682
Width
150
Plate thickness
1,25
DFAAM 400 DD
Item no.
7138688
Width
400
Plate thickness
1,25
DFAAM 600 DD
Item no.
7138692
Width
600
Plate thickness
1,25
