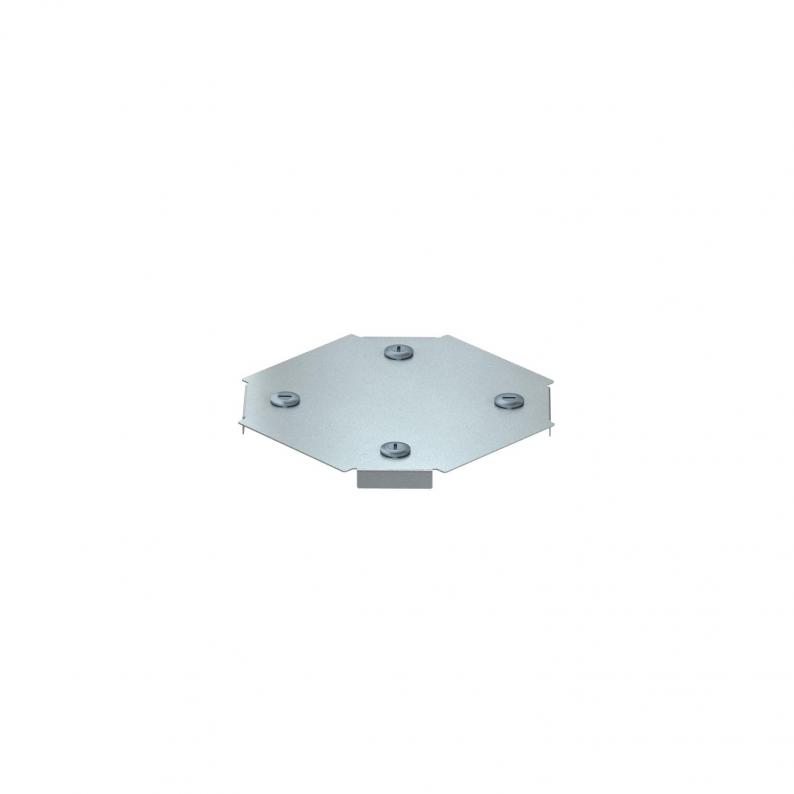

Cover for Magic cross-over DD

Cover for Magic cross-over DD

Type DFKM 100 DD
|
Item no. 7138970
|
EAN 4012195931324
Show all variants
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

Cover for cross-over with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 35 mm
  • Kablo kanalı, kenar yüksekliği 60 mm
  • Kablo kanalı, kenar yüksekliği 85 mm
  • Kablo kanalı, kenar yüksekliği 110 mm

Technical data

Dimensions

Width100 mm
Dimension B100 mm

Technical data

Paslanmaz çelik, mordanlıno
Material thickness1,25 mm
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Fastening typeSash lock
BoyutB=100mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
DFKM 100 DD
Item no.
7138970
Width
100
DFKM 300 DD
Item no.
7138976
Width
300
DFKM 400 DD
Item no.
7138978
Width
400
