Cover for Magic tee FS

Type DFTM 500 FS
|
Item no. 7138800
|
EAN 4012195930938
Item no. / Type
Width
Plate thickness

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

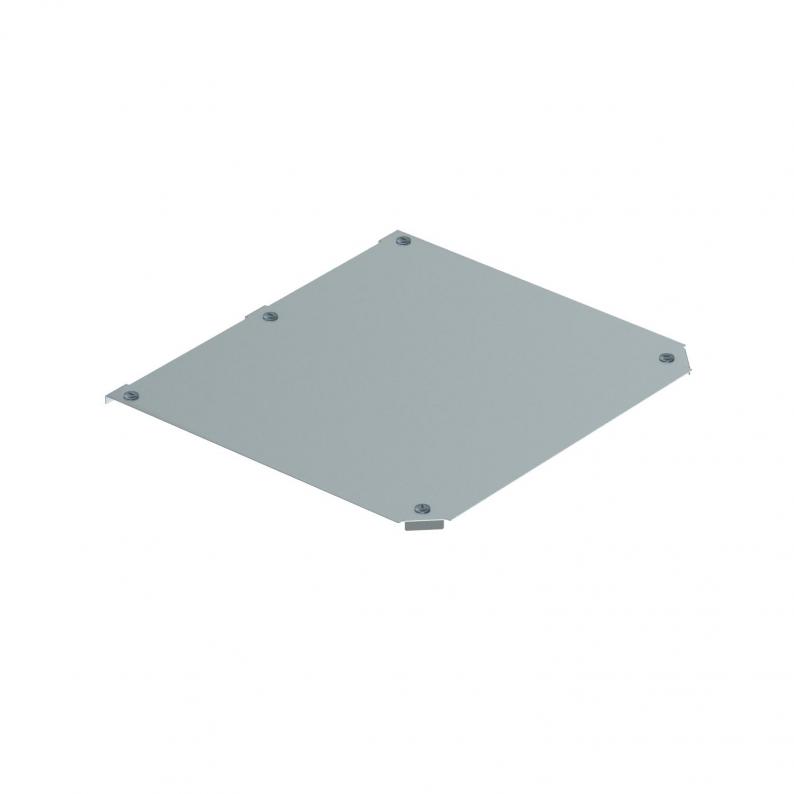

Cover for tee with pre-mounted turn buckle.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanalı, kenar yüksekliği 35 mm
  • Kablo kanalı, kenar yüksekliği 60 mm
  • Kablo kanalı, kenar yüksekliği 85 mm
  • Kablo kanalı, kenar yüksekliği 110 mm

Technical data

Dimensions

Width500 mm
Dimension B500 mm

Technical data

Paslanmaz çelik, mordanlıno
Plate thickness1,25 mm
Material thickness1,25 mm
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Fastening typeSash lock
BoyutB=500mm
SurfaceStrip galvanized
MaterialSteel

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Width
DFTM 500 FS
Item no.
7138800
Width
500
Plate thickness
1,25
DFTM 600 FS
Item no.
7138802
Width
600
Plate thickness
1,25
