Cover for T branch piece DD

Type WDTRL 200 DD
|
Item no. 6231667
|
EAN 4012196504619

Description

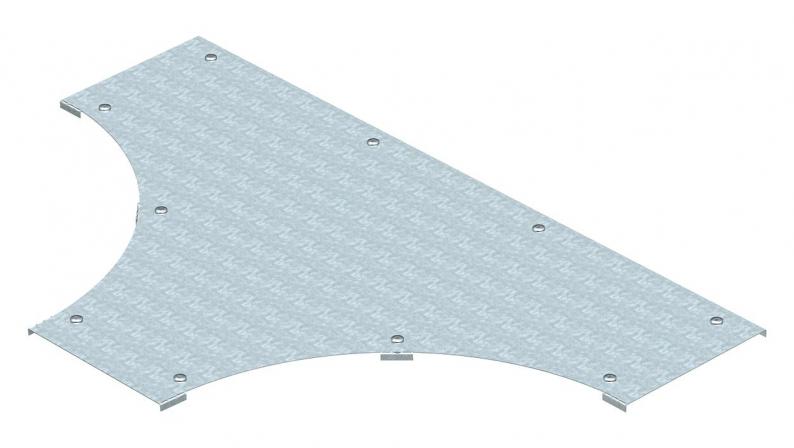

Cover for wide span T branch piece with pre-mounted turn buckles.

As the connector is mounted from the outside, the fitting cover is 300 mm shorter than the corresponding fitting. This must be considered when installing the track elements.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Uzun gergi kablo merdiveni, kenar yüksekliği 110 mm
  • Uzun gergi kablo merdiveni, kenar yüksekliği 160 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Dimension B200 mm
Dimension H15 mm

Technical data

Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Mandal kilit sayısı9 St.
Material thickness1 mm
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Fastening typeSash lock
BoyutB200mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya16,2959 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Plate thickness
WDTRL 200 DD
Item no.
6231667
Width
200
Plate thickness
1
WDTRL 300 DD
Item no.
6231675
Width
300
Plate thickness
1
WDTRL 400 DD
Item no.
6231683
Width
400
Plate thickness
1
WDTRL 500 DD
Item no.
6231691
Width
500
Plate thickness
1,25
WDTRL 600 DD
Item no.
6231705
Width
600
Plate thickness
1,25
