Cover for tee FS

Cover for tee FS

Type LTD 200 R3 FS
|
Item no. 6226100
|
EAN 4012196535422
Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

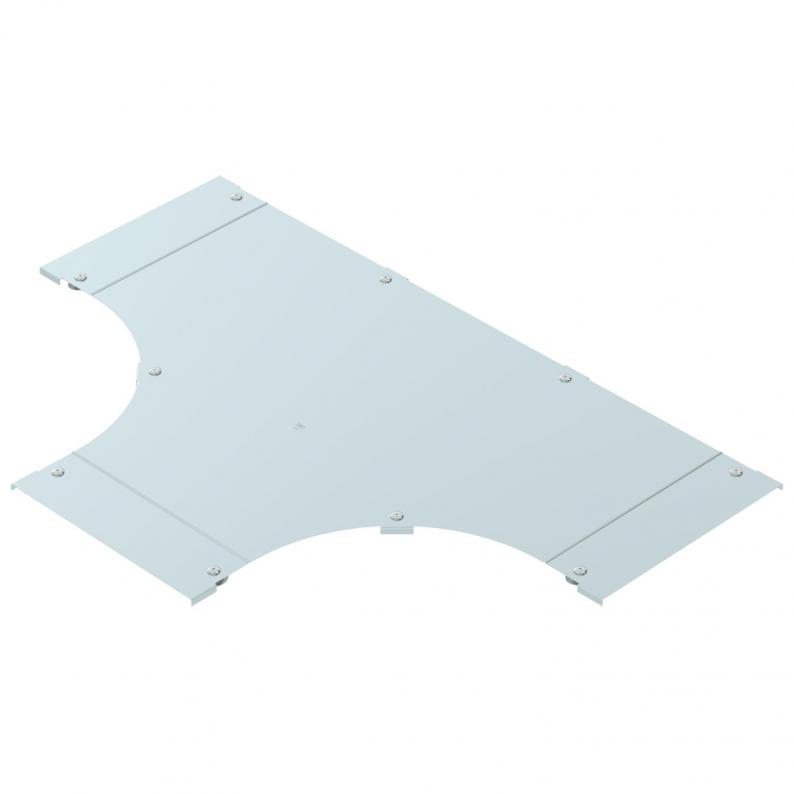

Cover with turn buckles for covering T pieces with welded rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Dimension B200 mm

Technical data

Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Material thickness1 mm
Suitable for cable ladderyes
Suitable for cable trayno
Fastening typeSash lock
DimensionB200
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

11,1652 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate11,1652 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Plate thickness
LTD 200 R3 FS
Item no.
6226100
Width
200
Plate thickness
1
LTD 300 R3 FS
Item no.
6226102
Width
300
Plate thickness
1
LTD 400 R3 FS
Item no.
6226104
Width
400
Plate thickness
1
LTD 500 R3 FS
Item no.
6226106
Width
500
Plate thickness
1,25
LTD 600 R3 FS
Item no.
6226108
Width
600
Plate thickness
1,25
