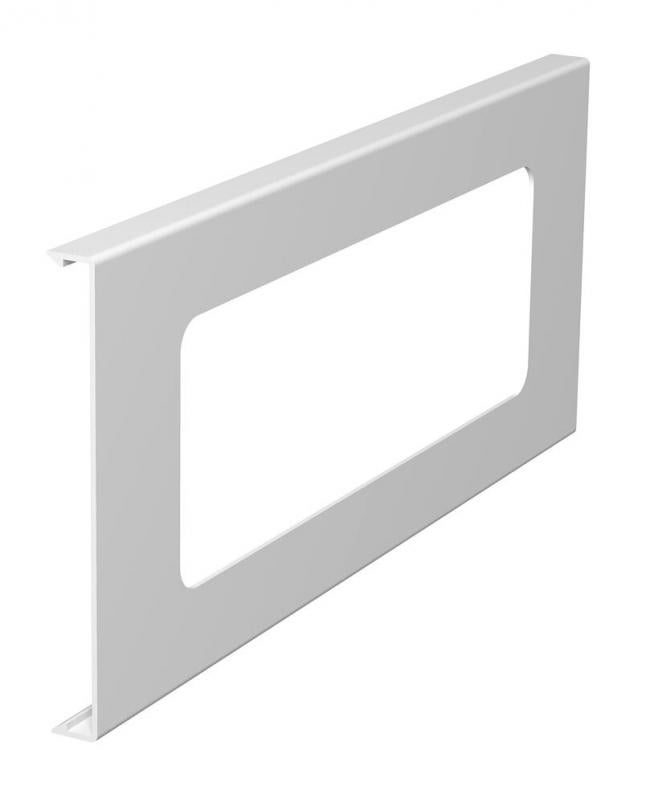

Cover for triple accessory mounting box for WDK trunking, trunking height 130 mm

Cover for triple accessory mounting box for WDK trunking, trunking height 130 mm

Type D2-3 130RW
|
Item no. 6194192
|
EAN 4012196618910
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 1 piece

piece

Description

Cover section, triple, for device installation in WDK trunking in conjunction with the device installation socket, type 2390.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

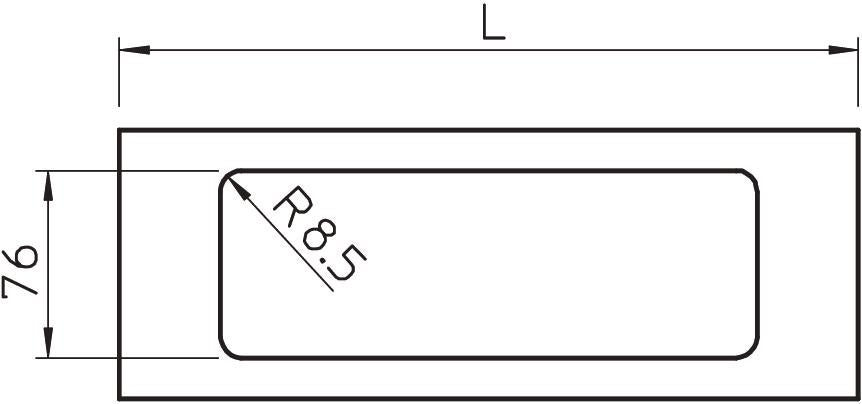

Dimensions

Length300 mm
Width130 mm
Height14 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension130x300mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesWDK

Environmental Data

0,2767 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2767 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2767 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
D2-3 130CW
Item no.
6169449
Length
300
Colour
Cream; RAL 9001
D2-3 130RW
Item no.
6194192
Length
300
Colour
Pure white; RAL 9010
