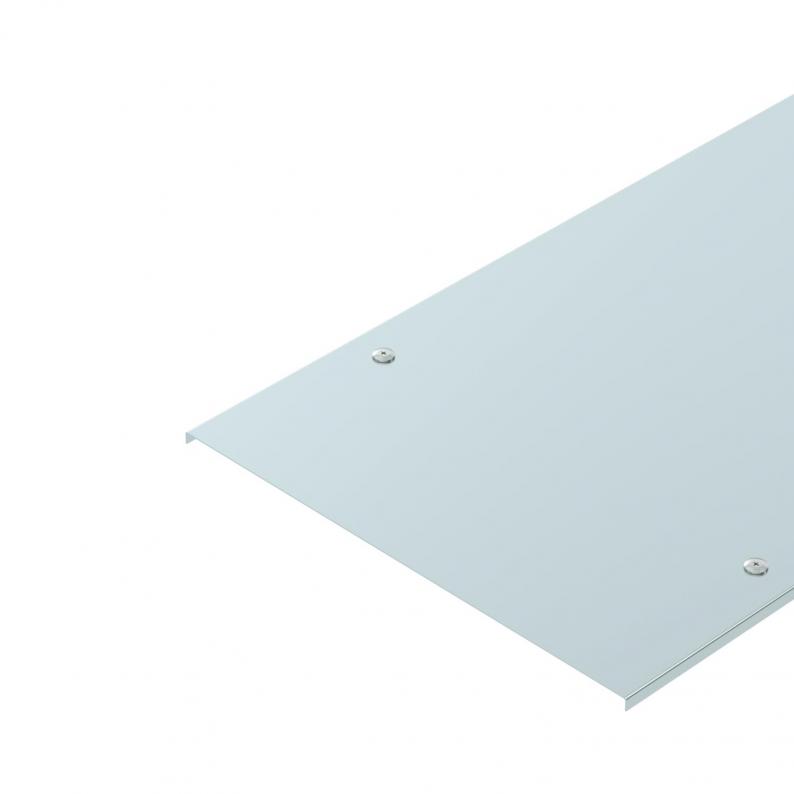

Cover incl. turn buckle FS

Cover incl. turn buckle FS

Type WDRL 1116 30 FS
|
Item no. 6227430
|
EAN 4012196169757
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.

Transverse bead from 500 mm width.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Uzun gergi kablo kanalı, kenar yüksekliği 110 mm
  • Uzun gergi kablo kanalı, kenar yüksekliği 160 mm
  • Uzun gergi kablo merdiveni, kenar yüksekliği 110 mm
  • Uzun gergi kablo merdiveni, kenar yüksekliği 160 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width300 mm
Height110 mm
Dimension L3000 mm
Dimension B300 mm
Dimension H15 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Mandal kilit sayısı6 St.
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Fastening typeSash lock
Boyut300x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya6,0837 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Plate thickness
WDRL 1116 20 FS
Item no.
6227422
Length
3000
Width
200
Plate thickness
1
WDRL 1116 30 FS
Item no.
6227430
Length
3000
Width
300
Plate thickness
1
WDRL 1116 40 FS
Item no.
6227449
Length
3000
Width
400
Plate thickness
1
WDRL 1116 50 FS
Item no.
6227457
Length
3000
Width
500
Plate thickness
1,5
WDRL 1116 60 FS
Item no.
6227465
Length
3000
Width
600
Plate thickness
1,5
