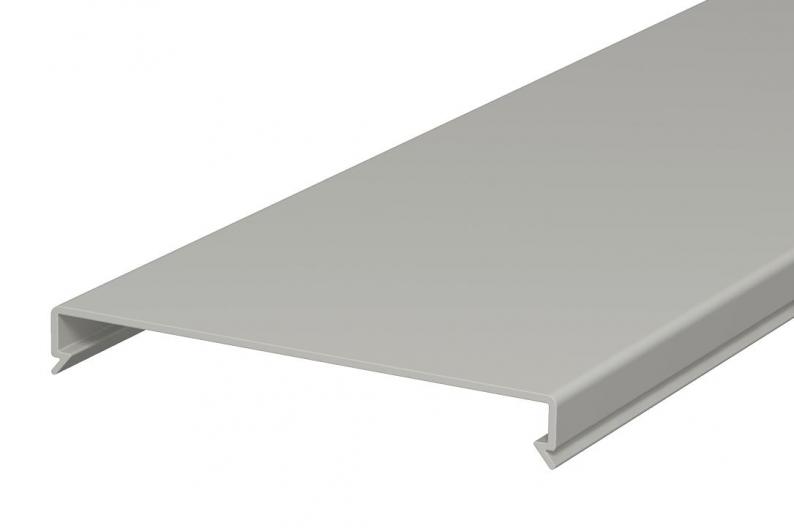

Cover LK4 D 120

Cover LK4 D 120

Type LK4 D 120
|
Item no. 6178492
|
EAN 4012196040926
Show all variants
Item no. / Type
6178492 / LK4 D 120
Length
2000 mm

Smallest selling unit: 2 m

m

Description

Trunking cover for replacement requirements.
Flushfloor design with predetermined break points
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wiring trunking
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length2000 mm
Width120 mm

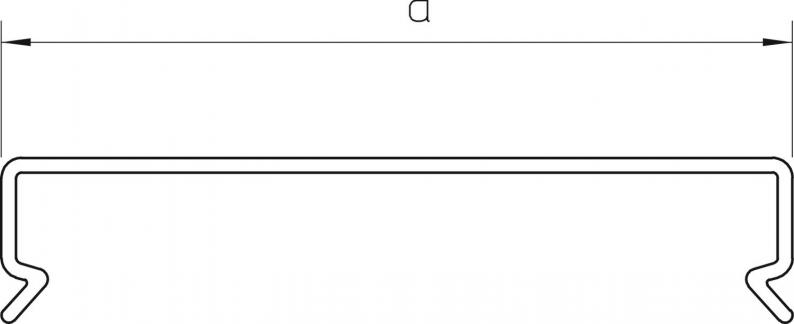

Dimension a127,8 mm

Technical data

Halogen-freeno
Self-extinguishingyes
for duct width120 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension120mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Product seriesLK4

Environmental Data

0,9595 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,9595 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,9595 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1
