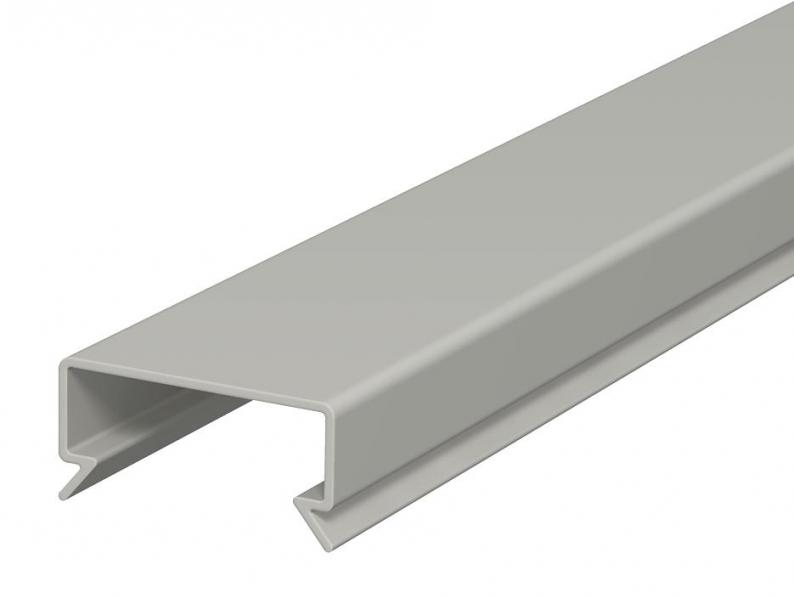

Cover LK4 D 25

Cover LK4 D 25

Type LK4 D 25
|
Item no. 6178482
|
EAN 4012196040322
Show all variants
Item no. / Type
6178482 / LK4 D 25
Length
2000 mm

Smallest selling unit: 2 m

m

Description

Trunking cover for replacement requirements.
Flushfloor design with predetermined break points
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Kablo kanalı
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width25 mm

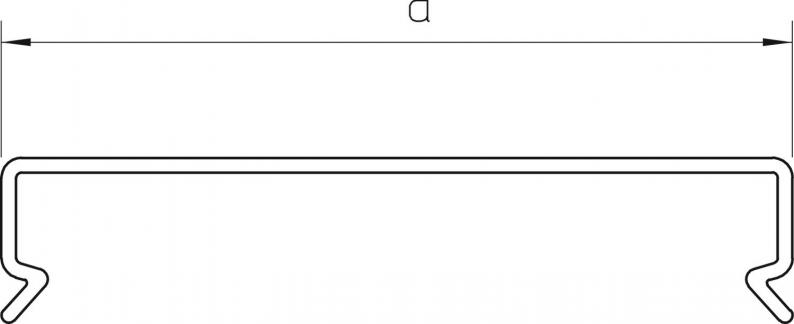

Dimension a31 mm

Technical data

Halojen İçermezno
kendiliğinden sönenyes
for duct width25 mm
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut25mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,24 kg CO2e / 1 Meter
