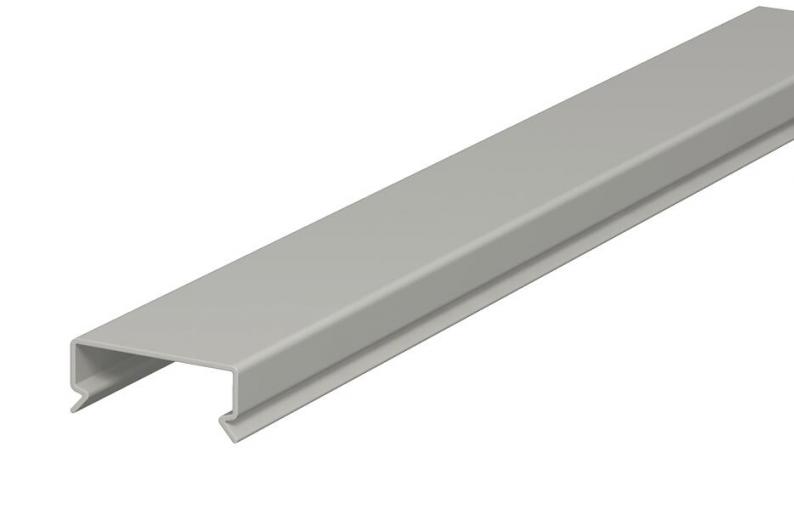

Cover LKV D 37

Cover LKV D 37

Type LKV D 37
|
Item no. 6178506
|
EAN 4012196041404
Show all variants
Item no. / Type
6178506 / LKV D 37
Length
2000 mm

Smallest selling unit: 24 m

m

Description

Trunking cover for replacement requirements.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wiring trunking
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm

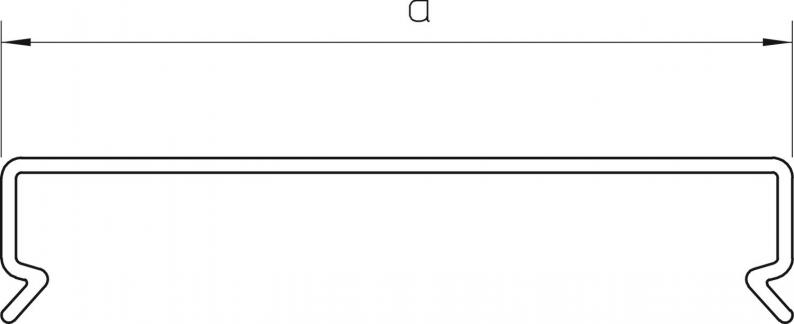

Dimension a37,5 mm

Technical data

Halogen-freeno
Self-extinguishingyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension37,5mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Product seriesLKV

Environmental Data

0,286 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,286 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,286 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Metres
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

LKV D 37
Item no.
6178506
Length
2000
