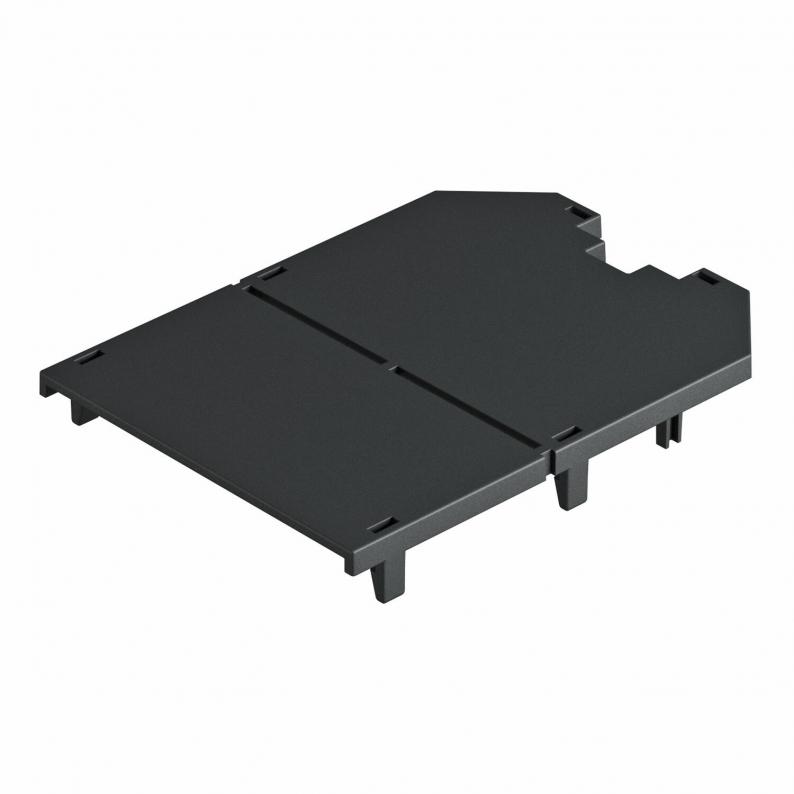

Cover plate for universal support UT3 and UT4, blank

Type UT34 P0
|
Item no. 7408745
|
EAN 4012196435302

Description

Cover plate, blank, for closing off unused installation space of the UT3 and UT4 universal support.
Plate can be reduced to 61 mm as required.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)

Technical data

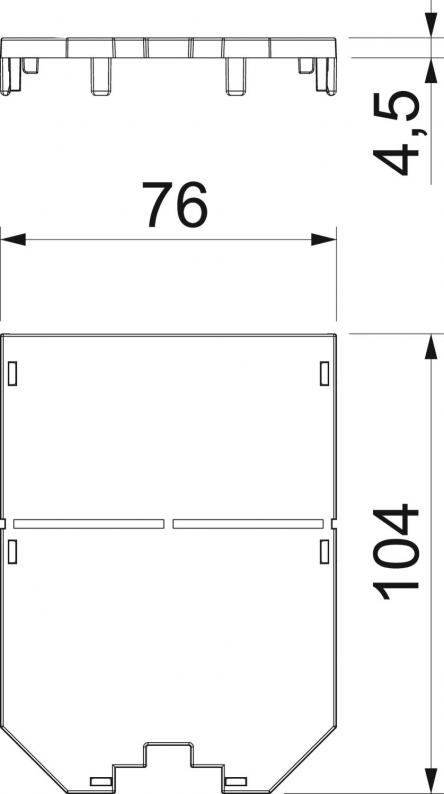

Dimensions

Length104 mm

Technical data

ApplicationMounting box
Blanking lidyes
Installation technologyGrid M45
Number of single openings0
Number of double openings0
Number of triple openings0
Number of CEE/Perilex openings0
Number of square openings0
Number of round openings0
Number of oval openings0
Suitable for labelling panelno
Division in UT32/3
Division in UT42/4
Fastening typeLockable
Boyut104x76x2
MaterialPolyamide
ColourGraphite black; RAL 9011

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,0906 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

UT34 P0
Item no.
7408745
