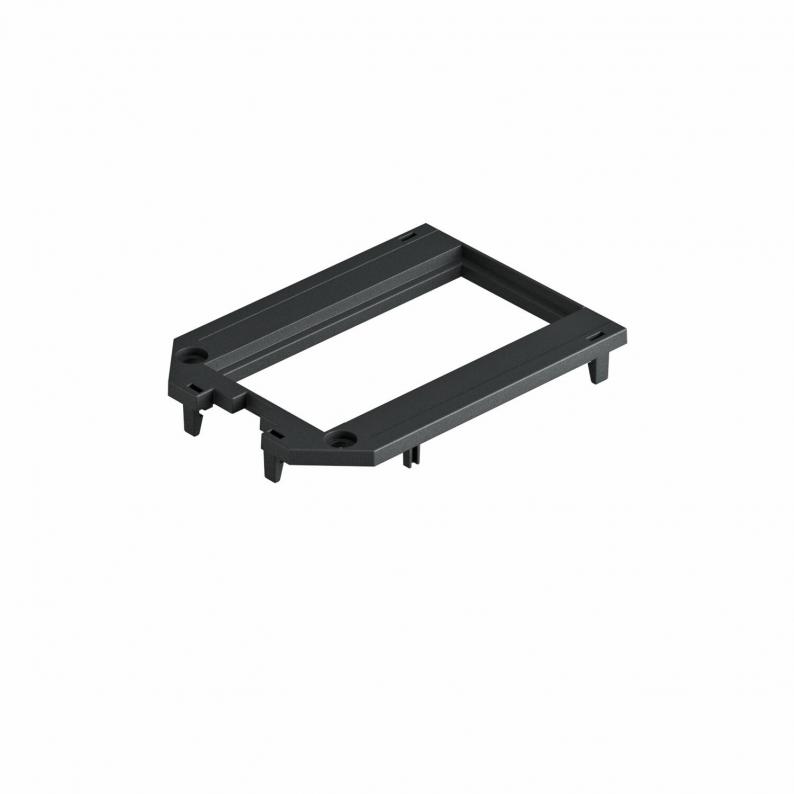

Cover plate for universal support UT3 and UT4, Modul 45® installation opening
Type UT34 P2
|Item no. 7408773
|EAN 4012196435364
Item no. / Type
7408773 / UT34 P2
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 2 Modul 45 devices.
Technical data
Dimensions
| Length | 104 mm |
|---|
Technical data
| Labelling panel | no |
|---|---|
| Application | Mounting box |
| Number of installable devices | 2 |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 0 |
| Number of double openings | 1 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT3 | 2/3 |
| Division in UT4 | 2/4 |
| Fastening type | Lockable |

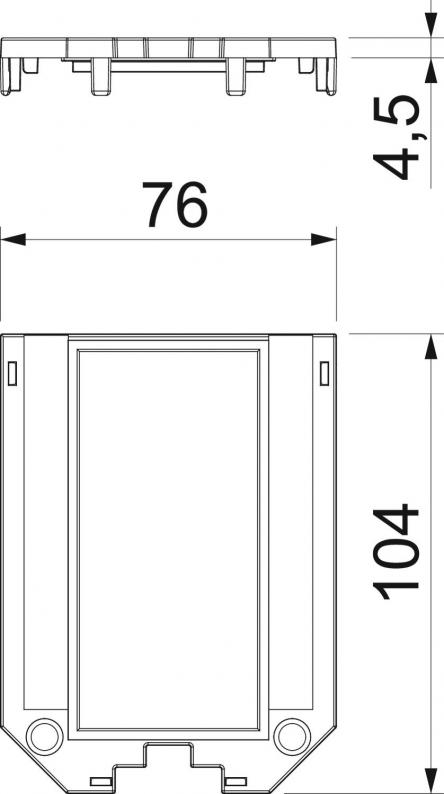

| Dimension | 104x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,067 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,067 kg CO2e / 1 Piece |
|---|
