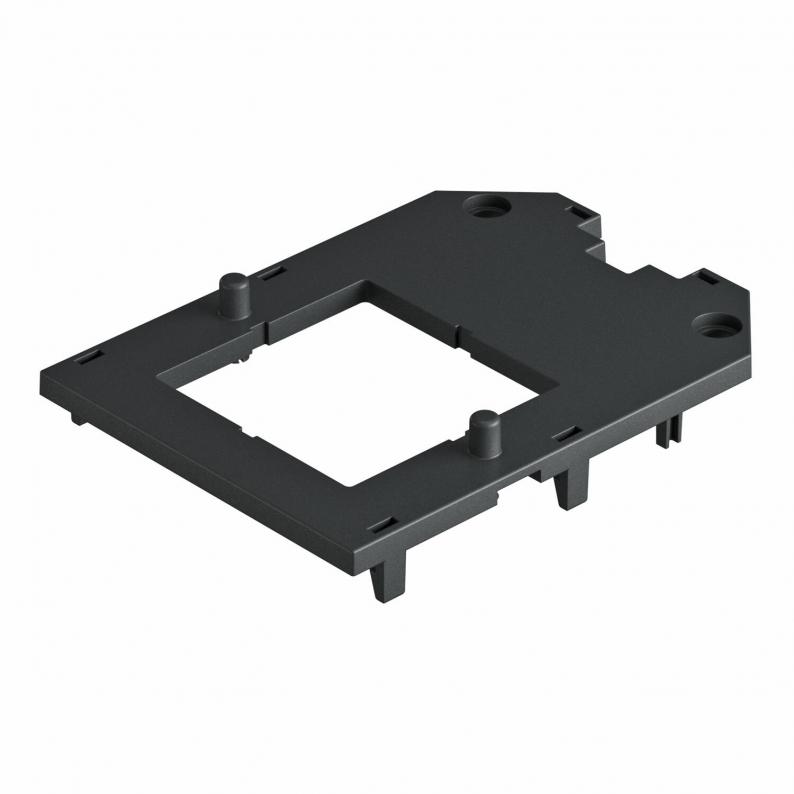

Cover plate for universal support UT3 and UT4, with installation opening for EKR device, with screw fastening
Type UT34 D2
|Item no. 7408785
|EAN 4012196435395
Item no. / Type
7408785 / UT34 D2
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 1 installation device with 50 mm central plate.
Technical data

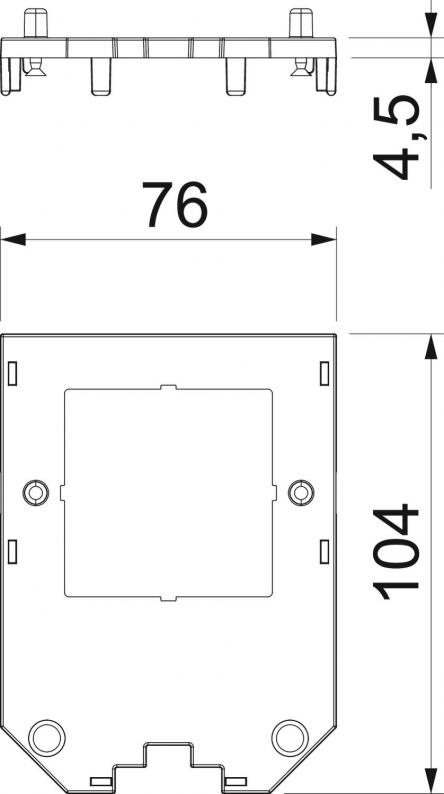

Dimensions
| Length | 104 mm |
|---|---|
| Width | 76 mm |
Technical data
| Labelling panel | no |
|---|---|
| Application | Mounting box |
| Number of installable devices | 1 |
| Blanking lid | no |
| Installation technology | 50 mm central plate |
| Number of single openings | 1 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 1 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT3 | 2/3 |
| Division in UT4 | 2/4 |
| Fastening type | Lockable |
| Dimension | 104x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,105 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,105 kg CO2e / 1 Piece |
|---|
