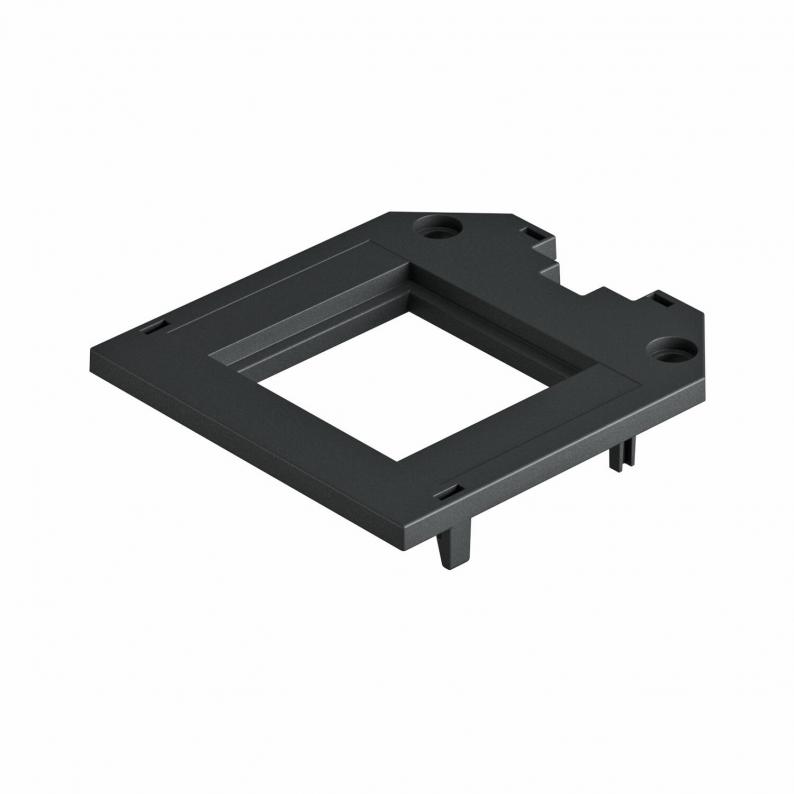

Cover plate for universal support UT3, Modul 45® installation opening
Type UT3 P1
|Item no. 7408751
|EAN 4012196435319
Item no. / Type
7408751 / UT3 P1
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 1 Modul 45.
Technical data

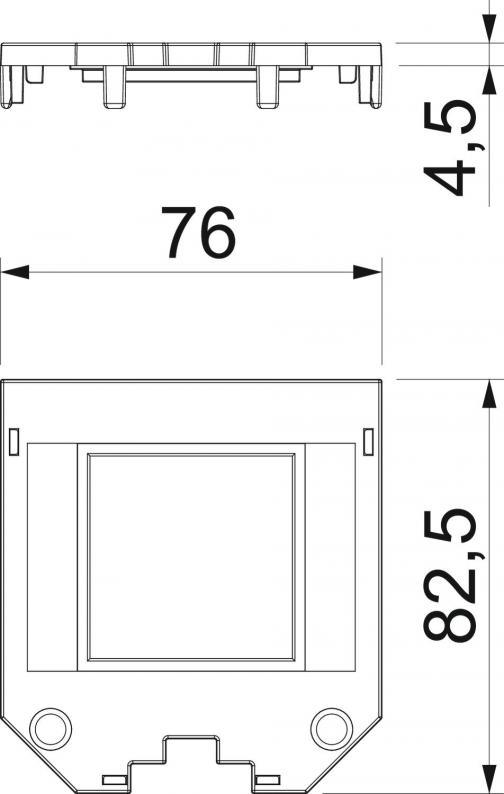

Dimensions
| Length | 82,5 mm |
|---|---|
| Width | 76 mm |
| Height | 4,5 mm |
Technical data
| Labelling panel | yes |
|---|---|
| Application | Mounting box |
| Number of installable devices | 1 |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 1 |
| Number of double openings | 0 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 1 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT3 | 1/2 |
| Fastening type | Lockable |
| Dimension | 82,5x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,0692 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0692 kg CO2e / 1 Piece |
|---|
