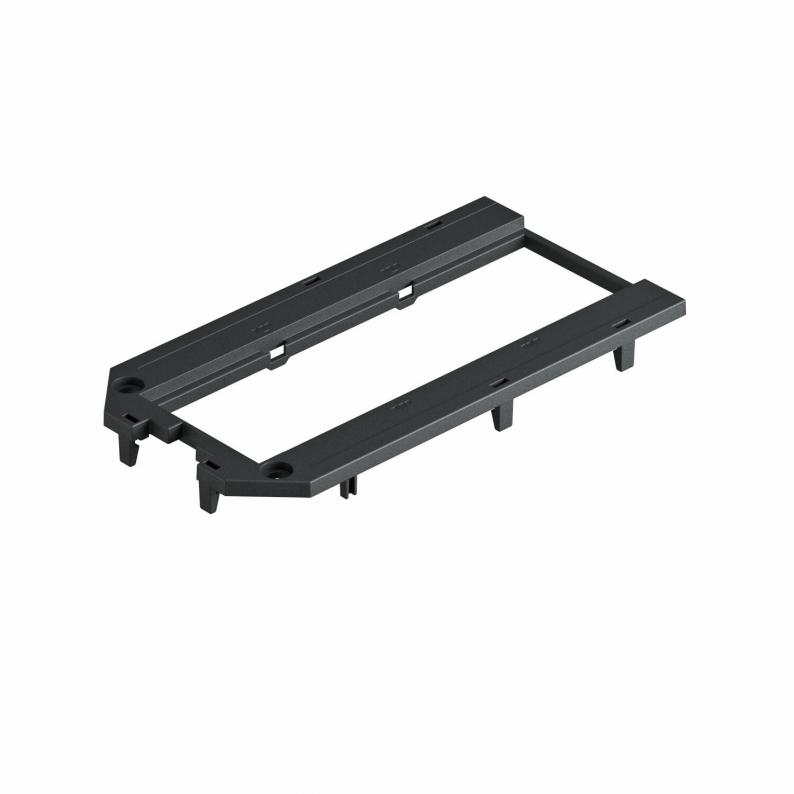

Cover plate for universal support UT4, Modul 45® installation opening
Type UT4 P3
|Item no. 7408761
|EAN 4012196435333
Item no. / Type
7408761 / UT4 P3
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 3 Modul 45 devices.
UT34T mounting bridge for the installation of individual devices or socket combinations must be ordered separately.
UT34T mounting bridge for the installation of individual devices or socket combinations must be ordered separately.
Technical data

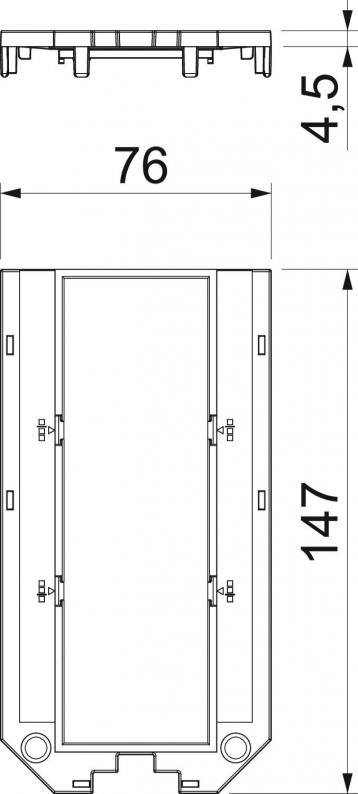

Dimensions
| Length | 147 mm |
|---|
Technical data
| Etiket alanı | no |
|---|---|
| Application | Mounting box |
| Monte edilebilir cihaz sayısı | 3 |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 0 |
| Number of double openings | 0 |
| Number of triple openings | 1 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT4 | 3/4 |
| Fastening type | Lockable |
| Boyut | 147x76x4 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0992 kg CO2e / 1 Piece |
|---|
