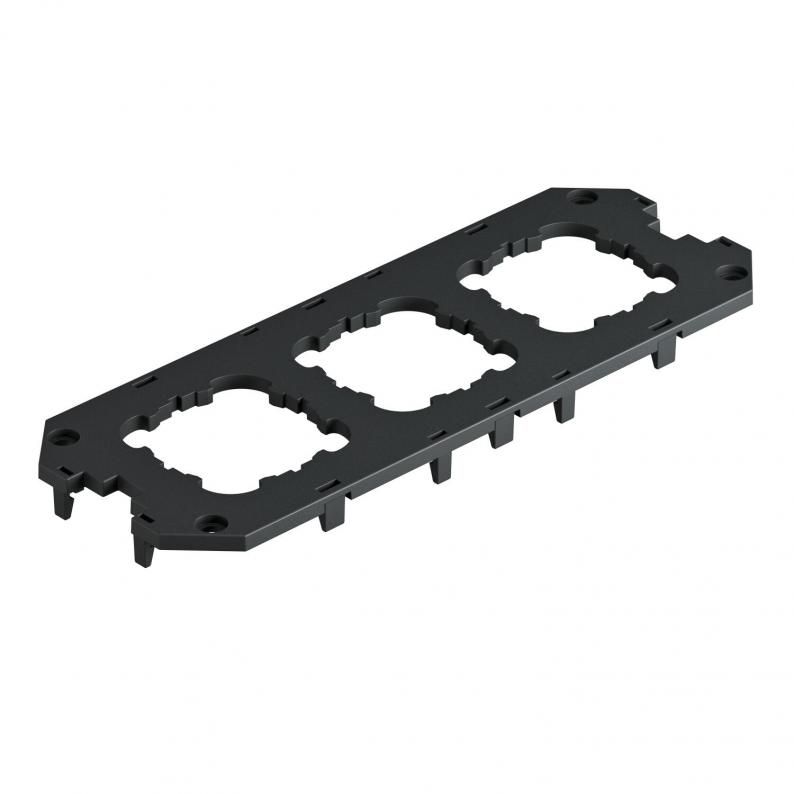

Cover plate for universal support UT4, with installation openings for 3 EK devices
Type UT4 D3
|Item no. 7408789
|EAN 4012196483969
Item no. / Type
7408789 / UT4 D3
Smallest selling unit: 10 piece
10piece
piece
Description
Cover plate for the installation of 3 installation devices with support clamp (EK version).
Technical data

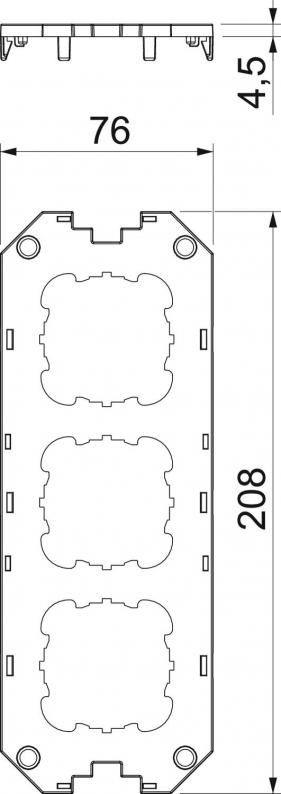

Dimensions
| Length | 208 mm |
|---|---|
| Width | 76 mm |
Technical data
| Etiket alanı | no |
|---|---|
| Application | Mounting box |
| Monte edilebilir cihaz sayısı | 3 |
| Blanking lid | no |
| Installation technology | 50 mm central plate |
| Number of single openings | 0 |
| Number of double openings | 0 |
| Number of triple openings | 1 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 3 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Division in UT4 | 1/1 |
| Fastening type | Lockable |
| Boyut | 28x76x13 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,1272 kg CO2e / 1 Piece |
|---|
