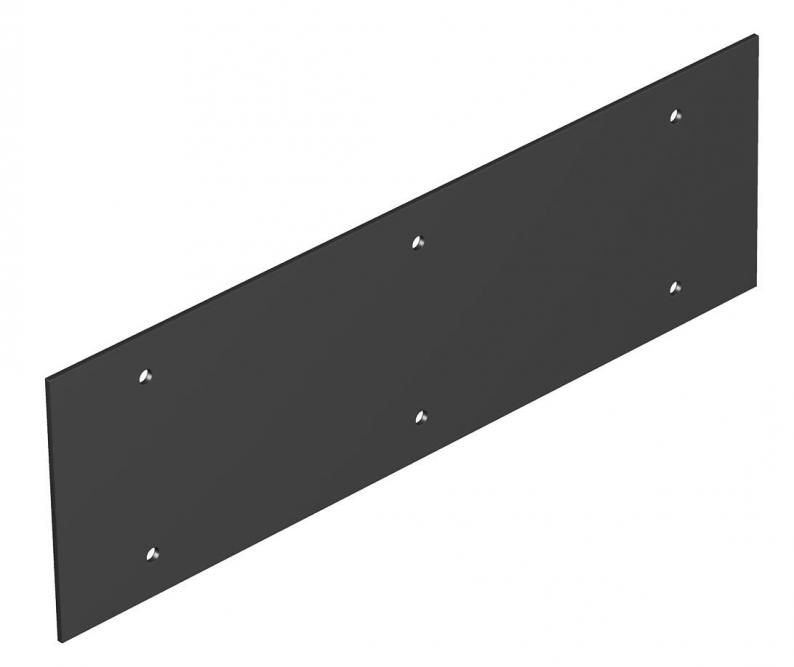

Cover plate, Telitank T12L, blank, for lengthwise side

Cover plate, Telitank T12L, blank, for lengthwise side

Type T12L P04S 9011
|
Item no. 7408132
|
EAN 4012195114239
Show all variants
Item no. / Type
7408132 / T12L P04S 9011
Colour
Graphite black; RAL 9011

Smallest selling unit: 1 piece

piece

Description

Cover plate "blank", suitable for lengthwise side of T12L (1/1 cover).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

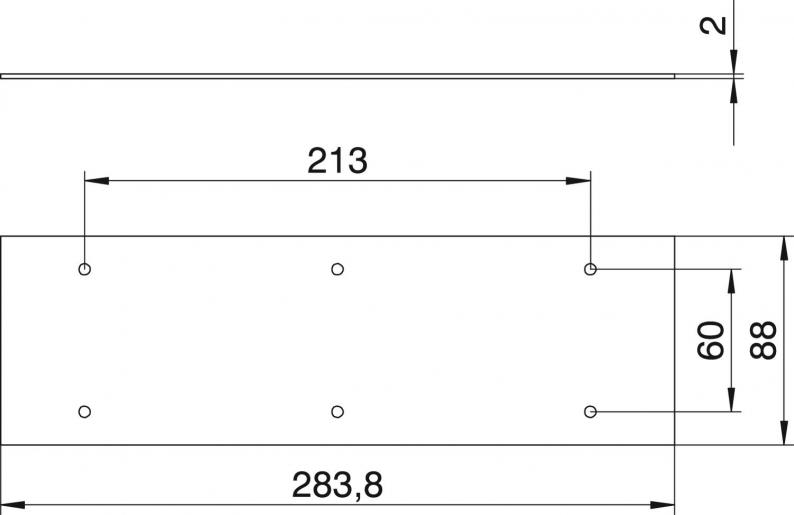

Dimensions

Length88 mm
Width284 mm
Height2 mm

Technical data

Labelling panelno
ApplicationOn-floor tank
Seal installation optionno
Blanking lidyes
Installation technologyMiscellaneous
Number of single openings0
Number of double openings0
Number of triple openings0
Number of CEE/Perilex openings0
Number of square openings0
Number of round openings0
Number of oval openings0
Suitable for labelling panelno
Fastening typeScrew-on
Dimension284x88mm
MaterialPolyvinylchloride
ColourGraphite black; RAL 9011

Environmental Data

0,166 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,166 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

T12L P04S 9011
Item no.
7408132
Colour
Graphite black; RAL 9011
