Cover plate, Telitank T12L, Modul 45® installation opening
Type T12L P16S 9011
|Item no. 7408156
|EAN 4012195114338
Item no. / Type
7408156 / T12L P16S 9011
Colour
Graphite black; RAL 9011
Smallest selling unit: 1 piece
1piece
piece
Description

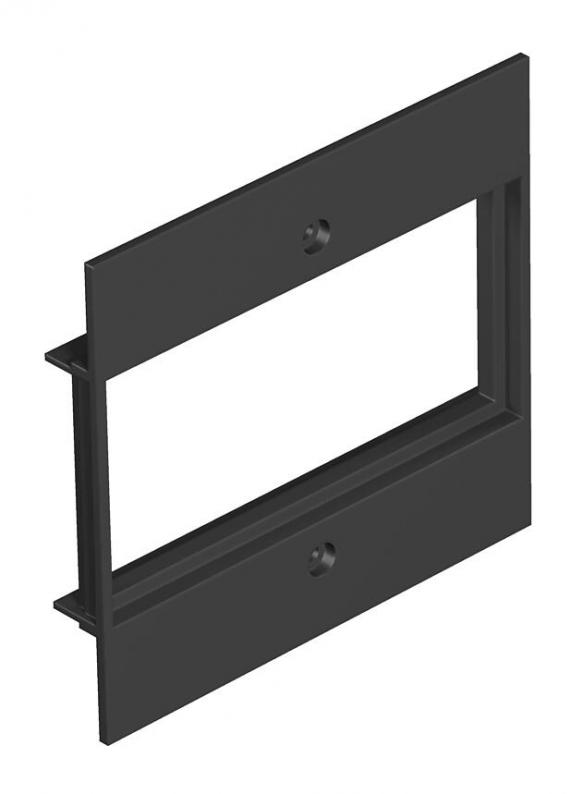

Cover plate with rectangular opening for a double Modul 45 socket, suitable for lengthwise side of T12L (1/3 cover).
Technical data

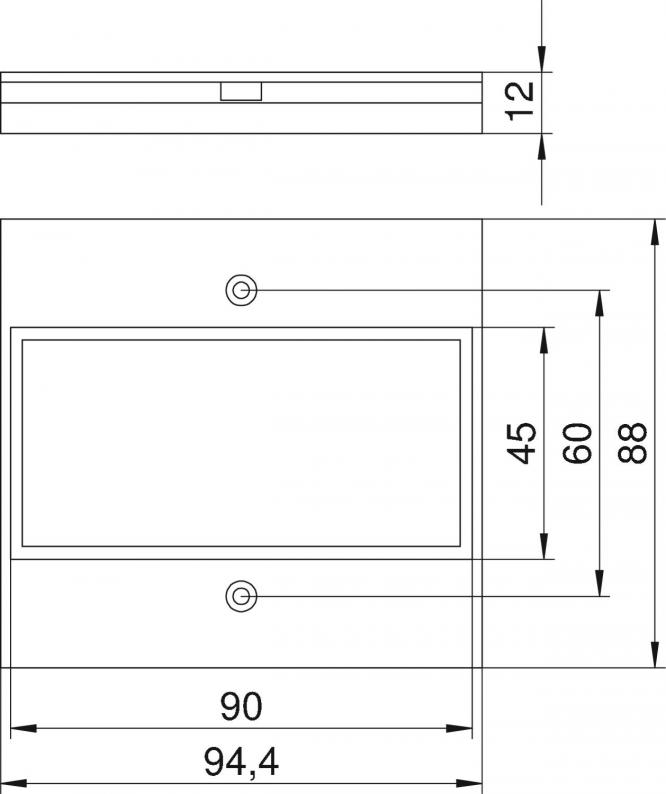

Dimensions
| Length | 88 mm |
|---|---|
| Width | 95 mm |
| Height | 2 mm |
Technical data
| Labelling panel | no |
|---|---|
| Application | On-floor tank |
| Seal installation option | no |
| Blanking lid | no |
| Installation technology | Grid M45 |
| Number of single openings | 0 |
| Number of double openings | 2 |
| Number of triple openings | 0 |
| Number of CEE/Perilex openings | 0 |
| Number of square openings | 0 |
| Number of round openings | 0 |
| Number of oval openings | 0 |
| Suitable for labelling panel | no |
| Fastening type | Screw-on |
| Dimension | 94.5x88mm |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |
Environmental Data
0,0825 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0825 kg CO2e / 1 Piece |
|---|
