Cover plate, Telitank T4L/T8NL, round installation opening for EKR device, for lengthwise side

Cover plate, Telitank T4L/T8NL, round installation opening for EKR device, for lengthwise side

Type T8NL P3 9011
|
Item no. 7408464
|
EAN 4012195115854
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

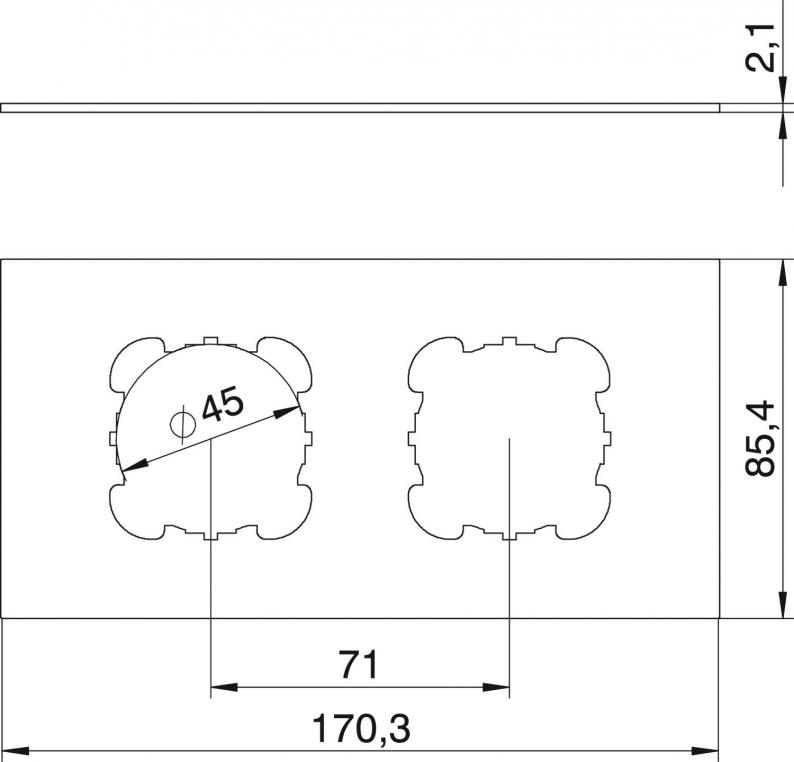

Cover plate with 2 perforations (Ø 45 mm) for two accessories with support ring, suitable for T4L and T8NL lengthwise side (1/2 cover).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width170 mm

Technical data

MaterialPolyamide
ColourGraphite black; RAL 9011

Environmental Data

0,1156 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1156 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Product images (2)
Tender specifications (1)

Variants

Colour
T8NL P3 9011
Item no.
7408464
Colour
Graphite black; RAL 9011
T8NL P3 7035
Item no.
7408470
Colour
Light grey; RAL 7035
