Cover Rapid 80, translucent, milky, smooth

Cover Rapid 80, translucent, milky, smooth

Type GK-OTGO
|
Item no. 6278690
|
EAN 4012196036233
Show all variants
Item no. / Type
6278690 / GK-OTGO
Length
2000 mm
Colour
Transparent

Smallest selling unit: 2 m

m

Description

Trunking cover for closing Rapid 80 GK (PVC), GS (steel) and GA (aluminium) device installation trunking as well as ISS service poles with a 76.5 mm system opening. The cover GK-OTGO is made from translucent, milky PC material in an opal version and is characterised by its frosted glass look. It is ideally suited for the integration of lighting in trunking and poles.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm

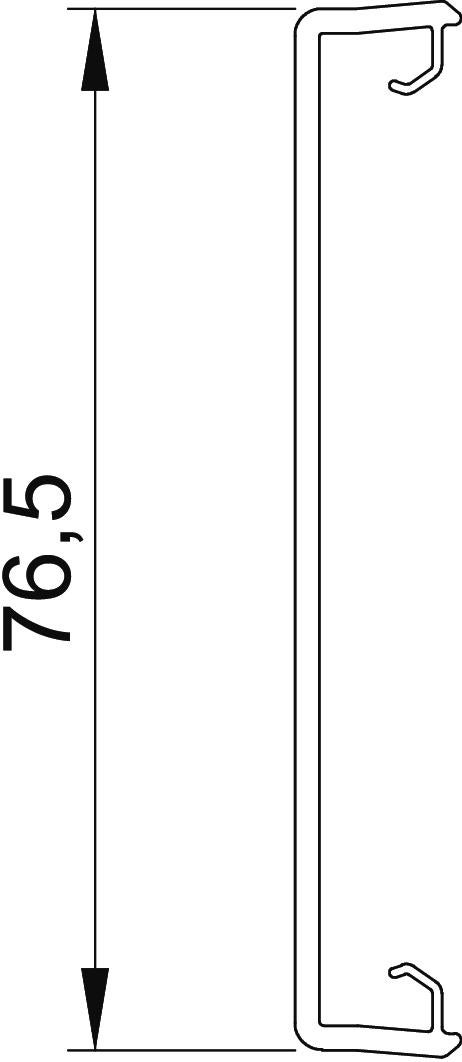

Width76,5 mm
Height12 mm

Technical data

Halogen-freeno
Protective filmyes
Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Version forSmooth
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension80x2000mm
MaterialPolycarbonate
ColourTransparent
Antibacterial treatmentno

Environmental Data

0,8038 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,8038 kg CO2e / 1 Meter
