Cross-connector flat/flat without adapter plate A4
Type 256 S6 V4A
|Item no. 5314574
|EAN 4012196428137
Item no. / Type
5314574 / 256 S6 V4A
Uyumluluk
max. FL30 mm
Smallest selling unit: 3600 piece
3600piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
• Fit: Max. FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
Technical data

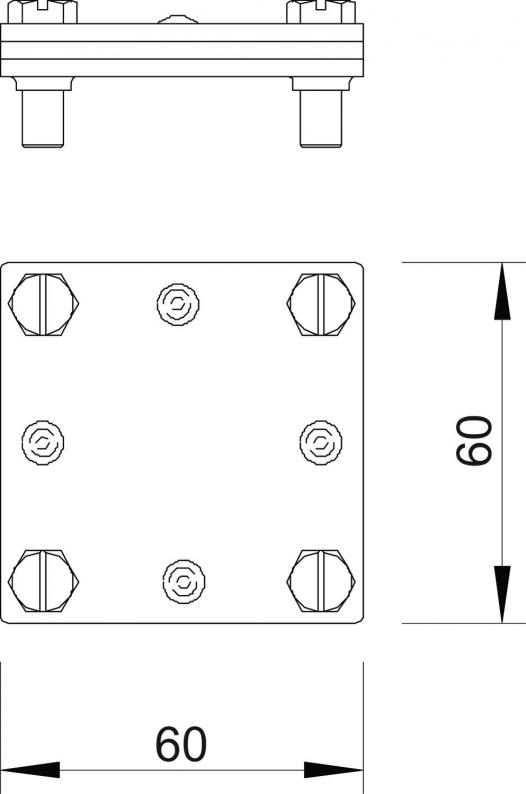

Dimensions
| Dimension A | 60 mm |
|---|---|
| Dimension B | 60 mm |
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Cross-connectors |
| Suitable for connection | Flat conductor Fl 30 / Fl 30 |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | max. FL30 mm |
| Boyut | 30mm |
| Material | Stainless steel 1.4401 |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,1874 kg CO2e / 1 Piece |
|---|
