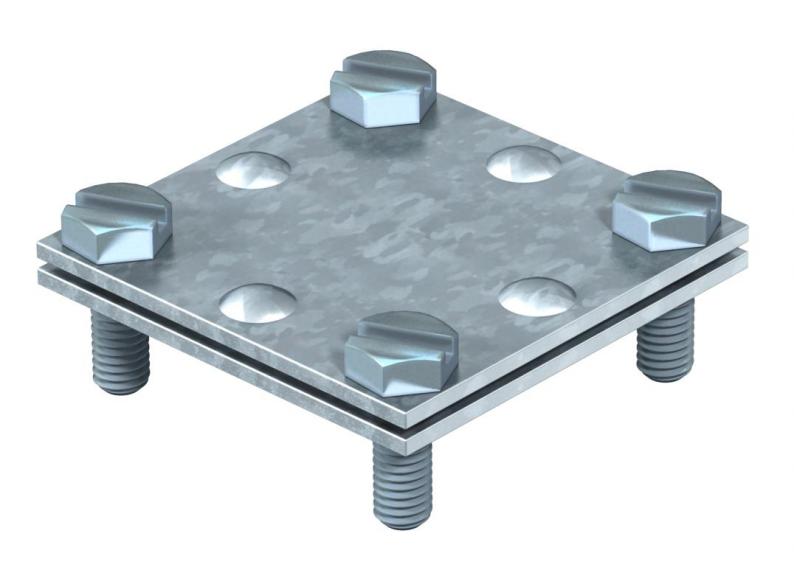

Cross-connector for flat conductor
Type 255 A-FL30 FT
|Item no. 5314534
|EAN 4012195419235
Item no. / Type
5314534 / 255 A-FL30 FT
Uyumluluk
max. FL30 mm
Surface
Hot-dip galvanised
Smallest selling unit: 20 piece
20piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
• Fit: Max FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 (F)
• Fit: Max FL 30 x FL 30
• Without adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 (F)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |
| Suitable for connection | Flat conductor Fl 30 / Fl 30 |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | max. FL30 mm |
| Boyut | 30mm |
| Surface | Hot-dip galvanised |
| Material | Steel |

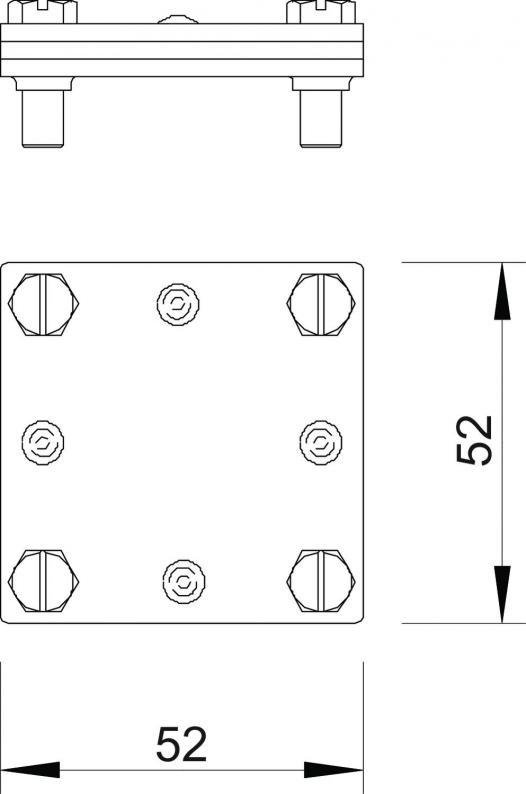

Dimensions
| Dimension A | 52 mm |
|---|---|
| Dimension B | 52 mm |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,2435 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
