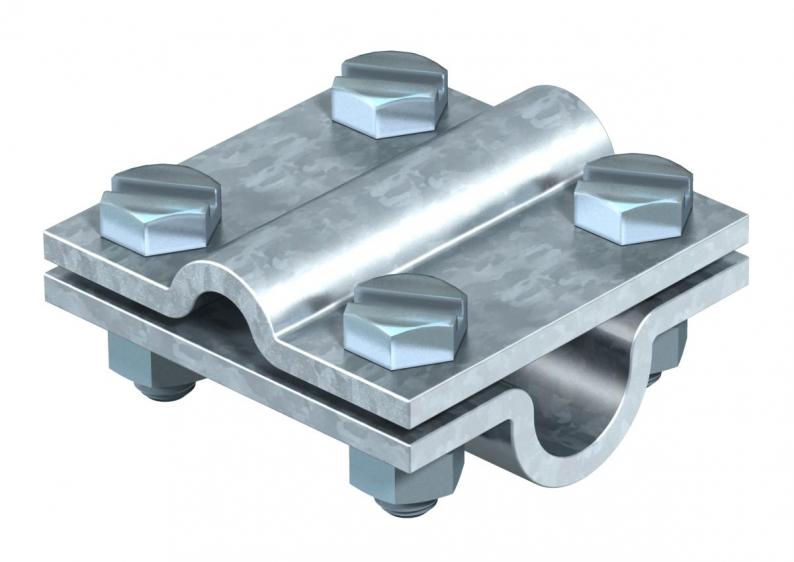

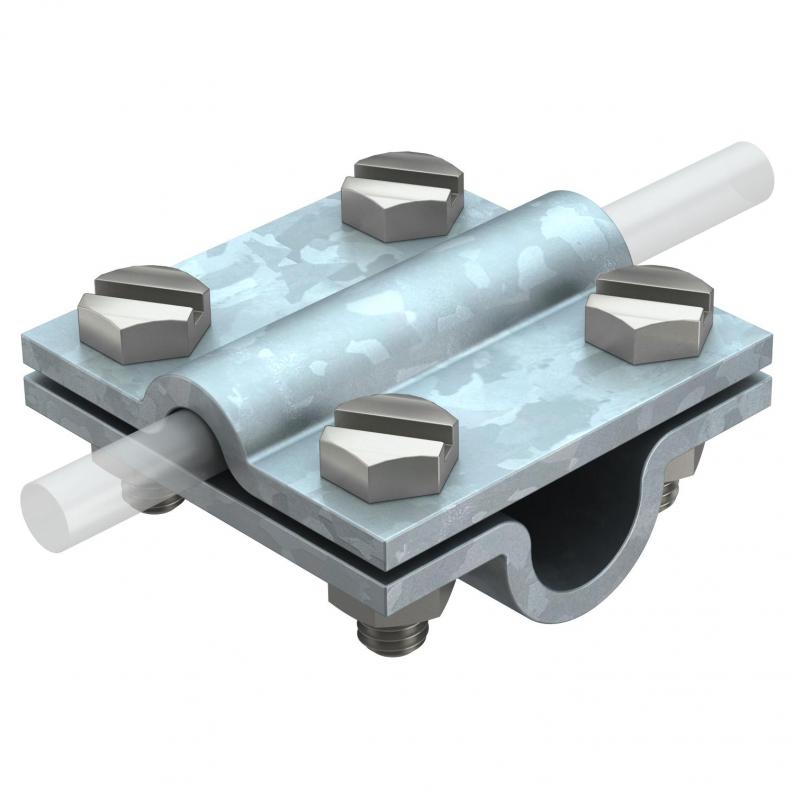

Cross-connector for Rd 8−10 x Rd 16
Type 253 10X16
|Item no. 5312809
|EAN 4012195418573
Item no. / Type
5312809 / 253 10X16
Uyumluluk
Rd 8-10 x 16 mm
Surface
Hot-dip galvanised
Smallest selling unit: 25 piece
25piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Fit: Rd 8-10 x Rd 16 / FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
• Fit: Rd 8-10 x Rd 16 / FL 30
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |
| Suitable for connection | Round conductor Rd 8-10 / Rd 16 |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 x 16 mm |
| Boyut | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |

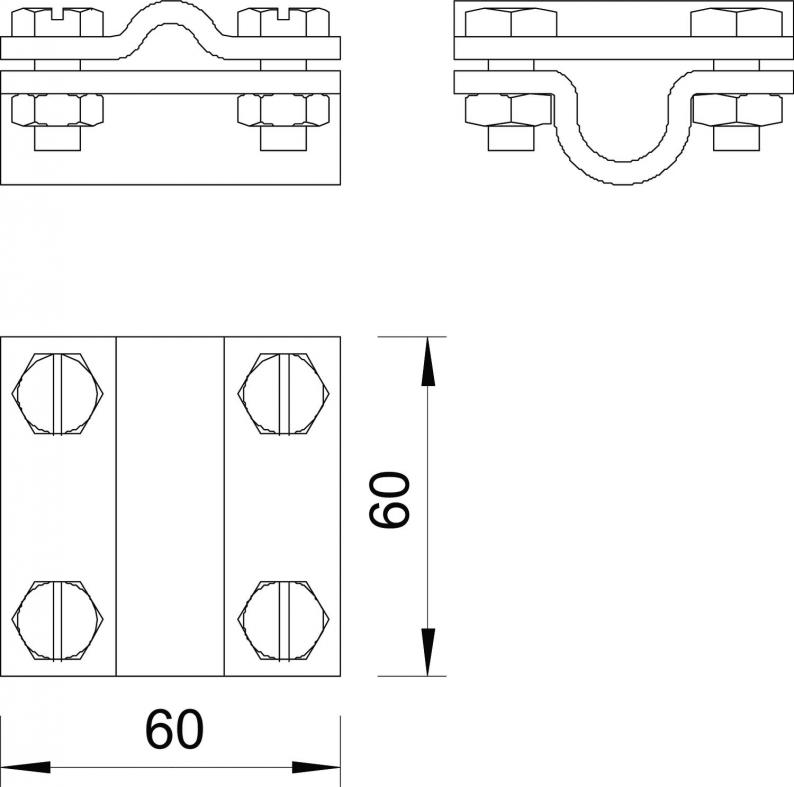

Dimensions
| Dimension A | 60 mm |
|---|---|
| Dimension B | 60 mm |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,5427 kg CO2e / 1 Piece |
|---|
