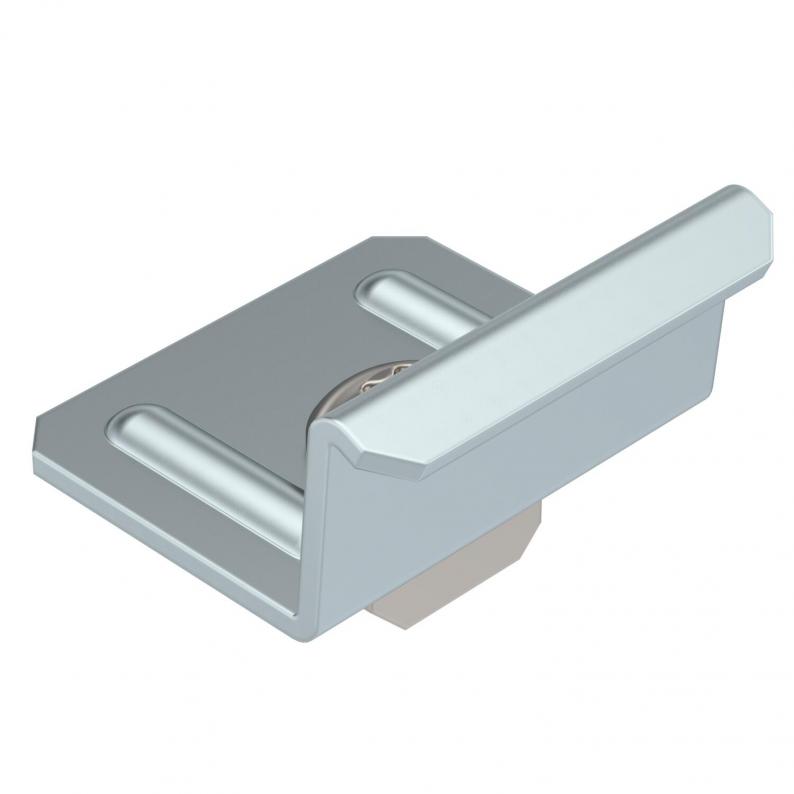

Cross-connector for TP support profiles
Type KV 45 DD
|Item no. 5901250
|EAN 4012197376390
Item no. / Type
5901250 / KV 45 DD
Smallest selling unit: 20 piece
20piece
piece
Description
Cross-connector for TP support profiles. Can be screwed on with Torx 40 spanner.
Technical data
Dimensions
| Width | 40 mm |
|---|---|
| Height | 30 mm |
Technical data
| Adjustable | no |
|---|---|
| Depth | 40 mm |
| Dimension | 30x40x40 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
| Photovoltaic connection and fastening element version | Cross-connectors |
| With module earthing | no |
Environmental Data
0,2511 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2511 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2511 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
