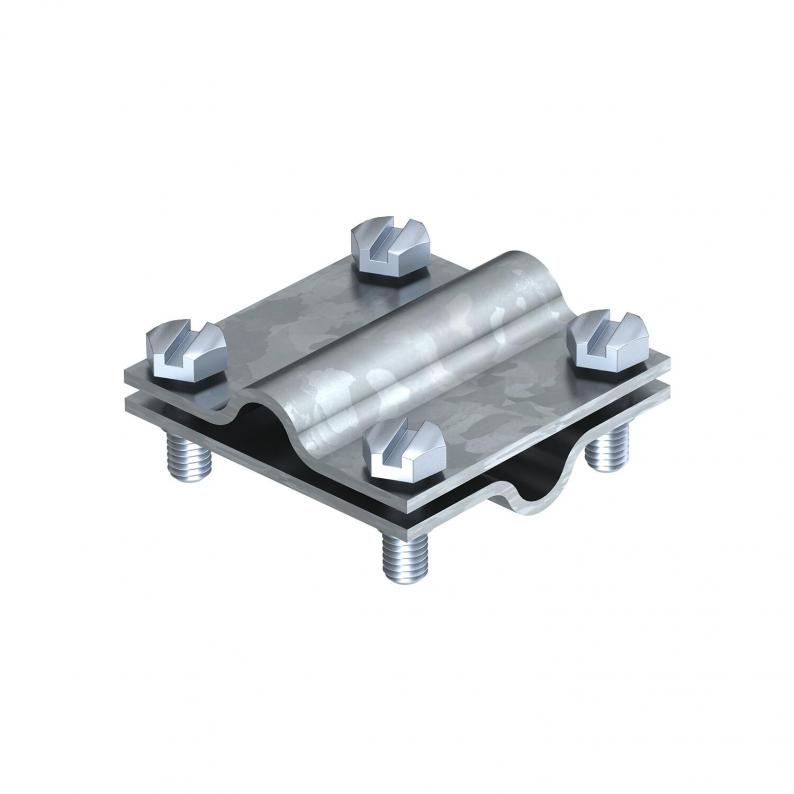

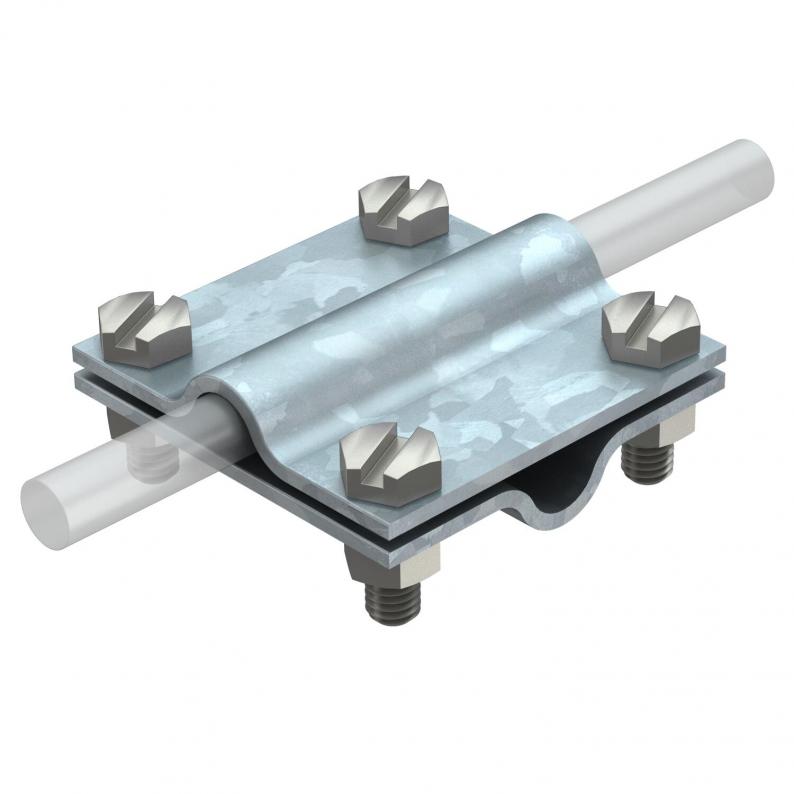

Cross-connector Rd 8−10 mm

Type 251 8-10

Item no. 5312035

EAN 4012195417972

Item no. / Type

5312035 / 251 8-10

Uyumluluk

Rd 8-10 mm

Smallest selling unit: 25 piece

piece

Description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• For round conductors, fit: Rd 8-10 x Rd 8-10

• With 4 hexagonal bolts M6 x 16 (VA)

Ayırma plakası	no
Type of fastening screw	Hexagonal bolt
Type of connector	Cross-connectors
Suitable for connection	Round conductor Rd 8–10 / Rd 8–10
Lightning current carrying capacity	H/100 kA
Uyumluluk	Rd 8-10 mm
Boyut	8-10mm
Surface	Hot-dip galvanised
Material	Steel

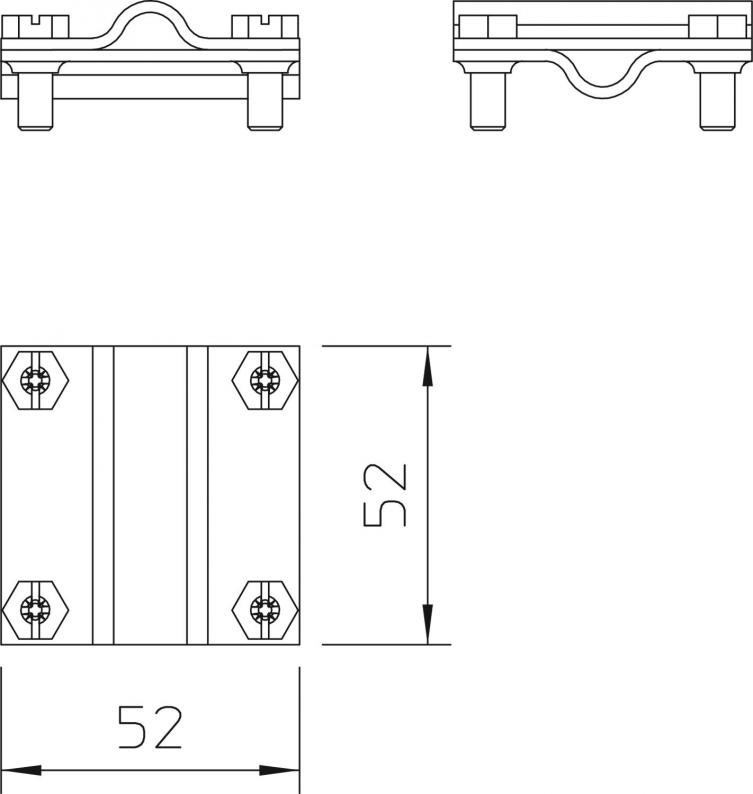

Dimension A	52 mm
Dimension B	52 mm

Packaging made completely from recycled cardboard.	yes
Packaging without plastic	yes

CO2 ayak izi (GWP) beşikten kapıya	0,3098 kg CO2e / 1 Piece
