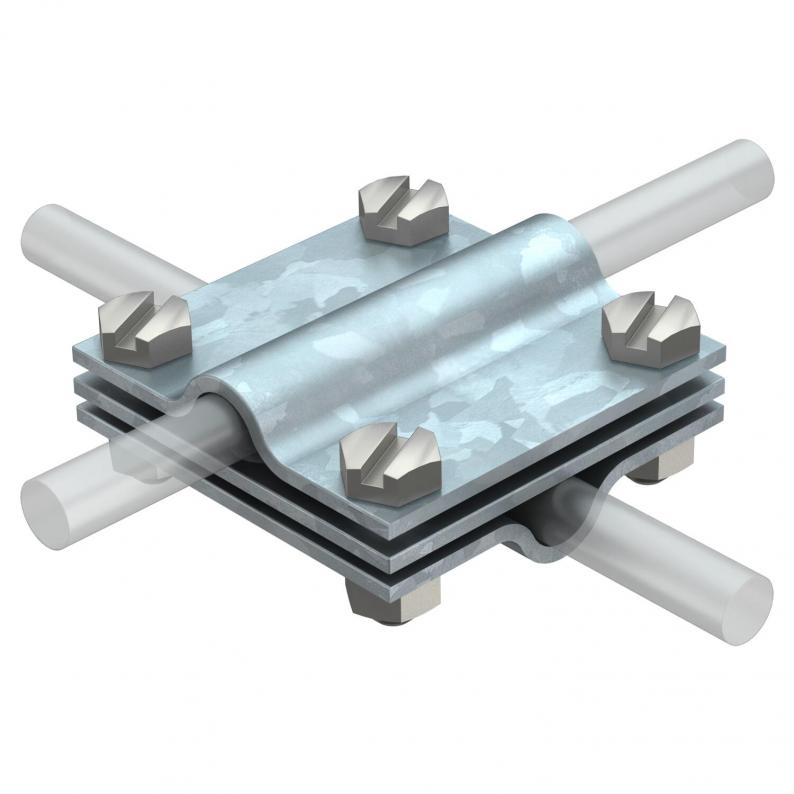

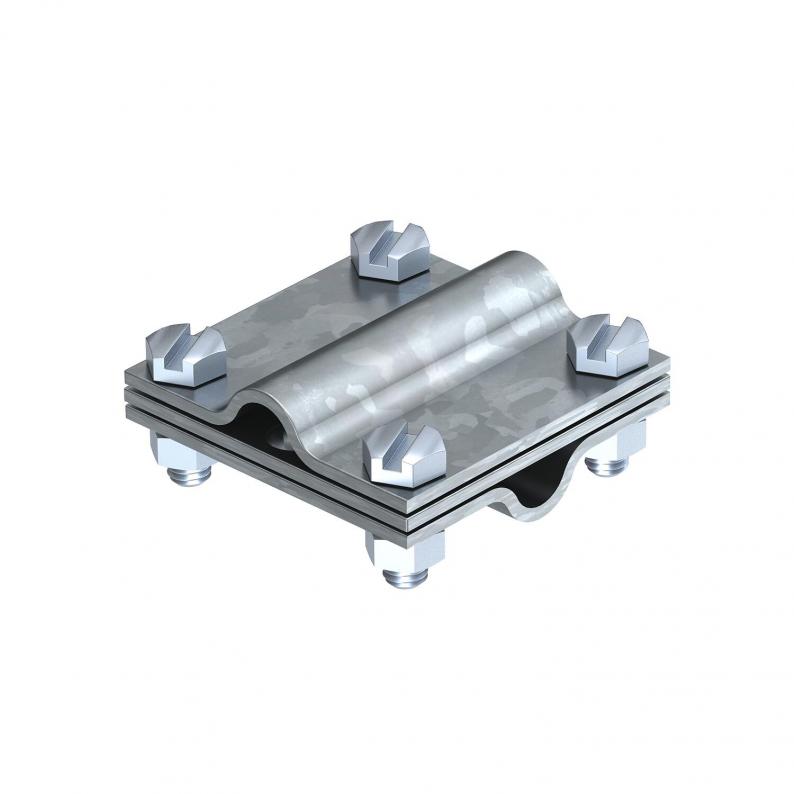

Cross-connector with intermediate plate for Rd 8−10 mm FT
Type 254 DIN 8-10 FT
|Item no. 5314038
|EAN 4012195418993
Item no. / Type
5314038 / 254 DIN 8-10 FT
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 25 piece
25piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• For round conductors, fit: Rd 8-10 x Rd 8-10
• With adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6
• For round conductors, fit: Rd 8-10 x Rd 8-10
• With adapter plate
• Mounted with 4 hexagonal bolts M6 x 20 and 4 hexagonal nuts M6
Technical data
Technical data
| Ayırma plakası | yes |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Cross-connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Dimensions
| Dimension A | 52 mm |
|---|---|
| Dimension B | 52 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,3541 kg CO2e / 1 Piece |
|---|
