Cross-over
Type LTS K DD
|Item no. 6074921
|EAN 4012195453475
Item no. / Type
6074921 / LTS K DD
Width
50 mm
Smallest selling unit: 1 piece
1piece
piece
Description

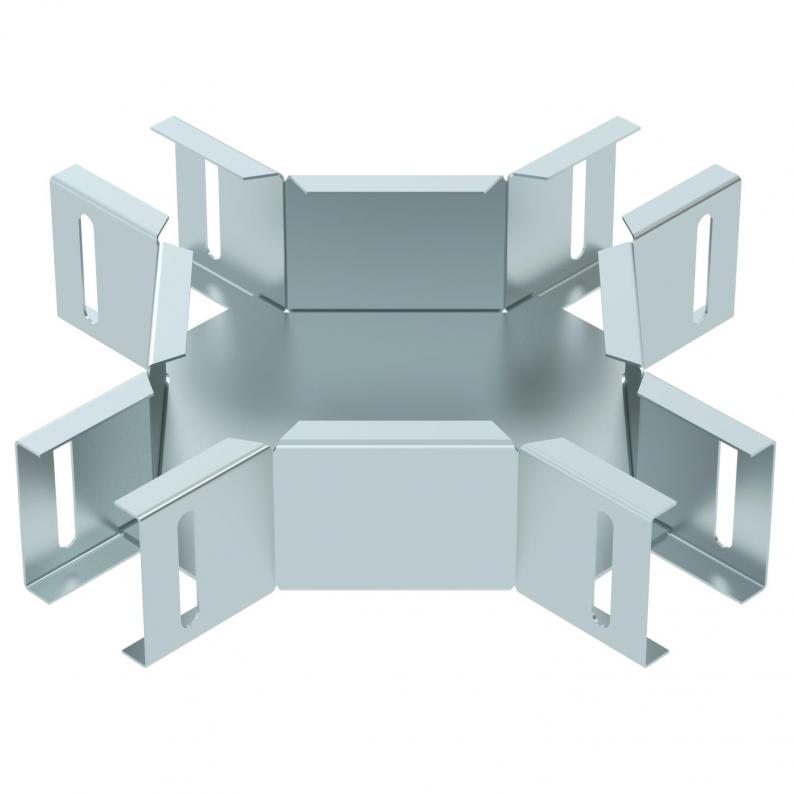

Cross-over, horizontal, for AZ small duct AZK 050 and luminaire support channel LTS 50.
Technical data

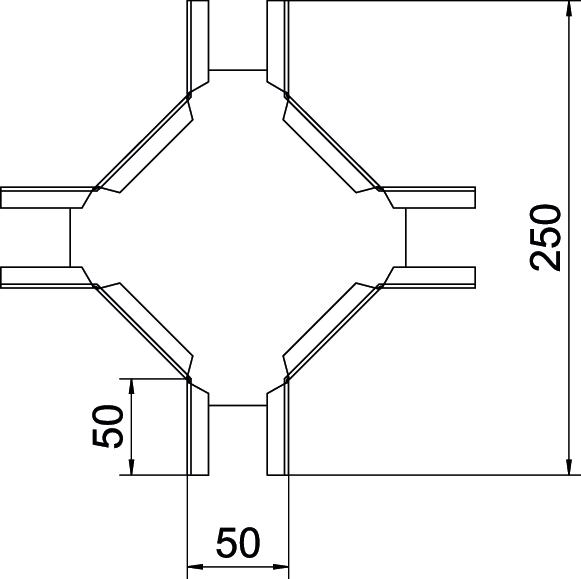

Dimensions
| Width | 50 mm |
|---|---|
| Height | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Material thickness, floor plate | 1,5 mm |
| Rail thickness | 1 mm |
| Dimension | 50x50 |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Material | Steel |
| Colour | zinc |
Environmental Data
2,3264 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3264 kg CO2e / 1 Piece |
|---|
