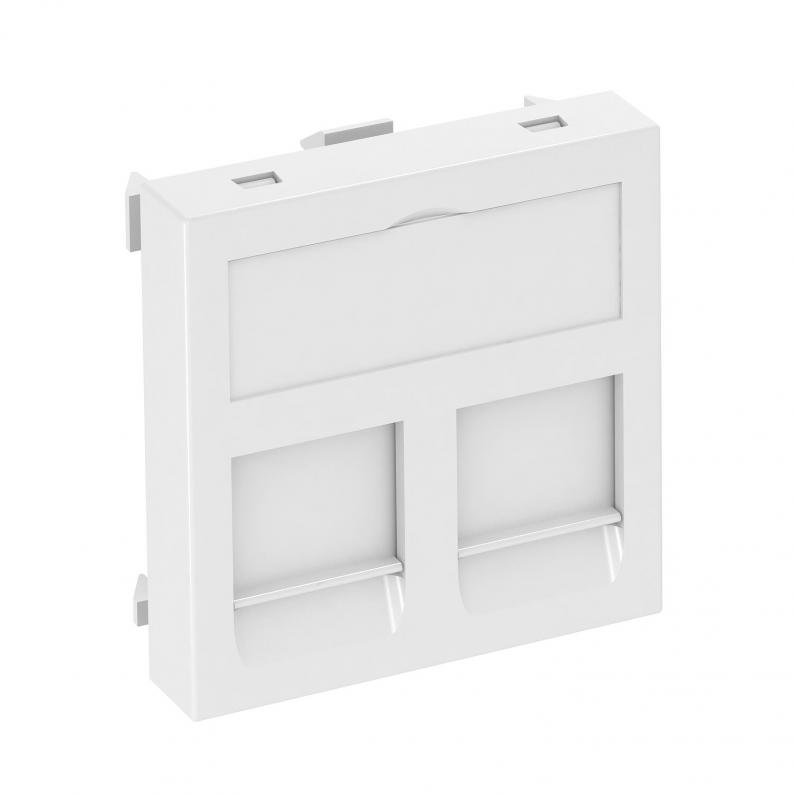

Data technology support, 1 module, straight outlet, type F

Data technology support, 1 module, straight outlet, type F

Type DTG-2F RW1
|
Item no. 6119220
|
EAN 4012195697015
Show all variants
Item no. / Type
With dust protection
Colour

Smallest selling unit: 1 piece

piece

Description

Data technology support with straight outlet and locking slider to accept two data technology connection modules. The locking fastening is suitable for horizontal and vertical installation in the system environment.

The type F data technology support is suitable for accepting the following data connection modules: Avaya/Systimax: M series.
For installation in Rapid 45 and Rapid 80 device installation trunking, ISS service poles and underfloor systems.


  • CO₂ footprint (PCF)

Technical data

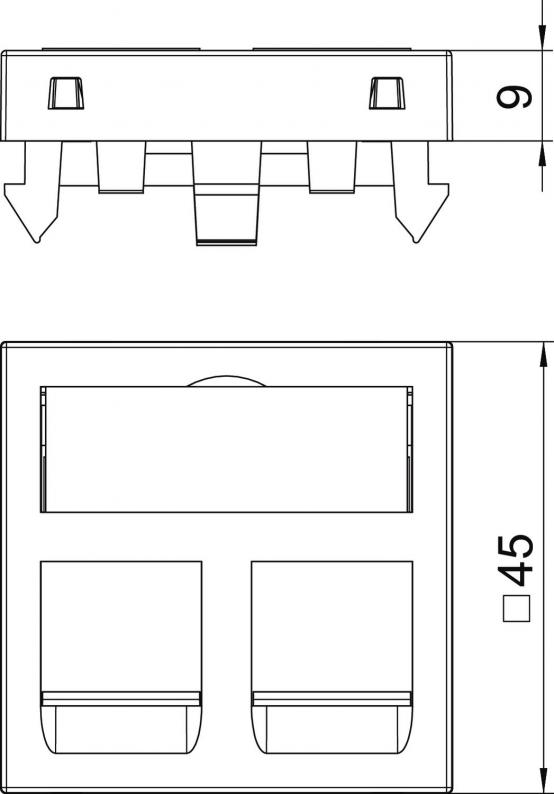

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halojen İçermezyes
Ünite sayısı1
Çekme yükü azaltma imkanıno
Koruma sınıfıIP20
Support ringno
With dust protectionyes
With printed labelno
Lamp-wire connectorno
Depth9 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseInstallable data connector
Labelling panelWith labelling panel
Fastening typeLock
Mounting openingType F
Boyut45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,1871 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

With dust protection
Colour
DTG-2F RW1
Item no.
6119220
With dust protection
evet
Colour
Pure white; RAL 9010
DTG-2F SWGR1
Item no.
6119222
With dust protection
yes
Colour
Black-grey; RAL 7021
DTG-2F AL1
Item no.
6119224
With dust protection
evet
Colour
Aluminium painted
