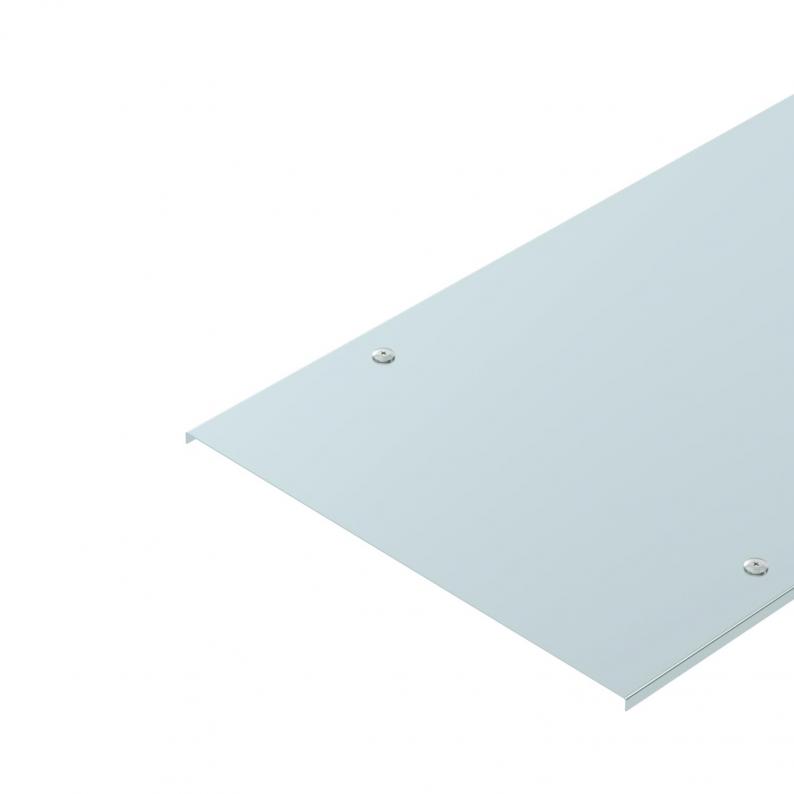

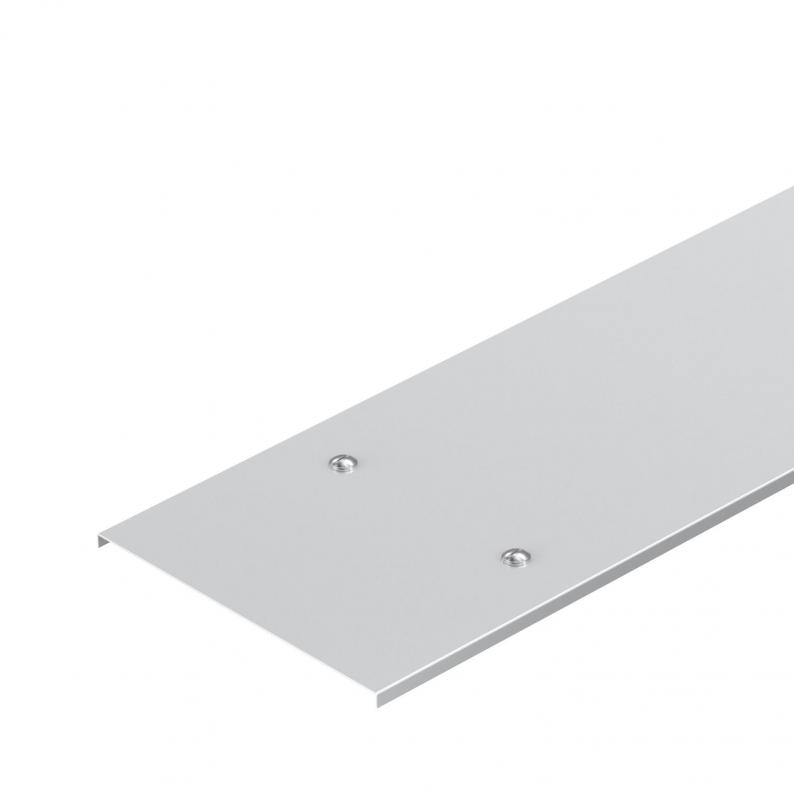

DD cover with turn buckle

DD cover with turn buckle

Type WDRL 1116 20 DD
|
Item no. 6227600
|
EAN 4012196072613
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.
Take appropriate constructive protection measures if there are high wind speeds.

Transverse bead from 500 mm width.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Uzun gergi kablo kanalı, kenar yüksekliği 110 mm
  • Uzun gergi kablo kanalı, kenar yüksekliği 160 mm
  • Uzun gergi kablo merdiveni, kenar yüksekliği 110 mm
  • Uzun gergi kablo merdiveni, kenar yüksekliği 160 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width200 mm
Height110 mm
Dimension L3000 mm
Dimension B200 mm
Dimension H15 mm

Technical data

Maintain electrical functionsno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Mandal kilit sayısı6 St.
Kafes kablo kanalı için uygunno
Kablo merdiveni için uygunyes
Kablo kanalı için uygunyes
Fastening typeSash lock
Boyut200x3000
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya4,2858 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Declarations (4)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Plate thickness
WDRL 1116 20 DD
Item no.
6227600
Length
3000
Width
200
Plate thickness
1
WDRL 1116 30 DD
Item no.
6227604
Length
3000
Width
300
Plate thickness
1
WDRL 1116 40 DD
Item no.
6227608
Length
3000
Width
400
Plate thickness
1
WDRL 1116 50 DD
Item no.
6227612
Length
3000
Width
500
Plate thickness
1,5
WDRL 1116 60 DD
Item no.
6227616
Length
3000
Width
600
Plate thickness
1,5
