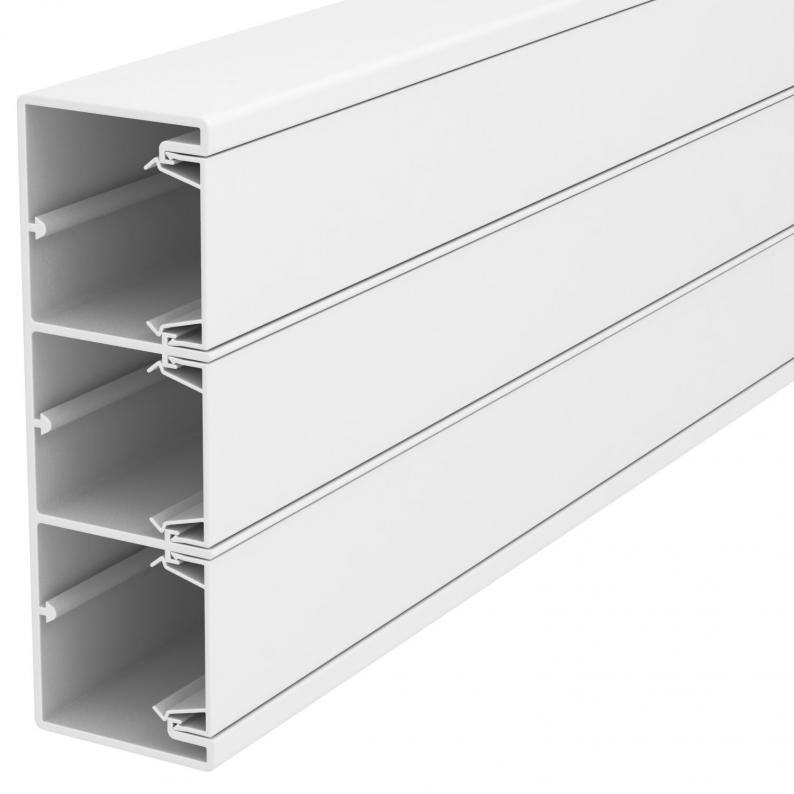

Device installation trunking Rapid 45-2, trunking width 160, trunking height 53
Type GEK-K53160-3
Item no. 6116073
EAN 4012195391630
Item no. / Type
6116073 / GEK-K53160-3
Length
2000 mm
Colour
Pure white; RAL 9010
This item is a discontinued product!
Smallest selling unit: 8 m
8m
m
Description
Trunking base and cover with base perforation for direct wall mounting.
Devices of 45 mm size can be clicked in directly.
Devices of 45 mm size can be clicked in directly.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 160 mm |
| Height | 53 mm |
Technical data
| Mounting perforation in base | yes |
|---|---|
| Usable cross-section | 6480 mm² |
| Halogen-free | no |
| Number of insertable partitions | 3 |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Protection rating | IP30 |
| Symmetrical | yes |
| Rectangular shape | yes |
| Number of covers | 3 |
| Cover width 2 | 45 mm |
| Cover width 3 | 45 mm |
| Rear panel version (inner side) | Other continuous profile |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Cover supplied | yes |
| ROHS-conformant | yes |
| Base perforation | With base perforation |
| Cover width | 45 mm |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 53x160x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| Product series | Rapid 45® |
Environmental Data
4,1267 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 4,1267 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 4,1267 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
