Device support, Modul 45

Device support, Modul 45

Type WDK GT1M45RW
|
Item no. 6154893
|
EAN 4012196617296
Show all variants
Item no. / Type
6154893 / WDK GT1M45RW

Smallest selling unit: 1 piece

piece

Description

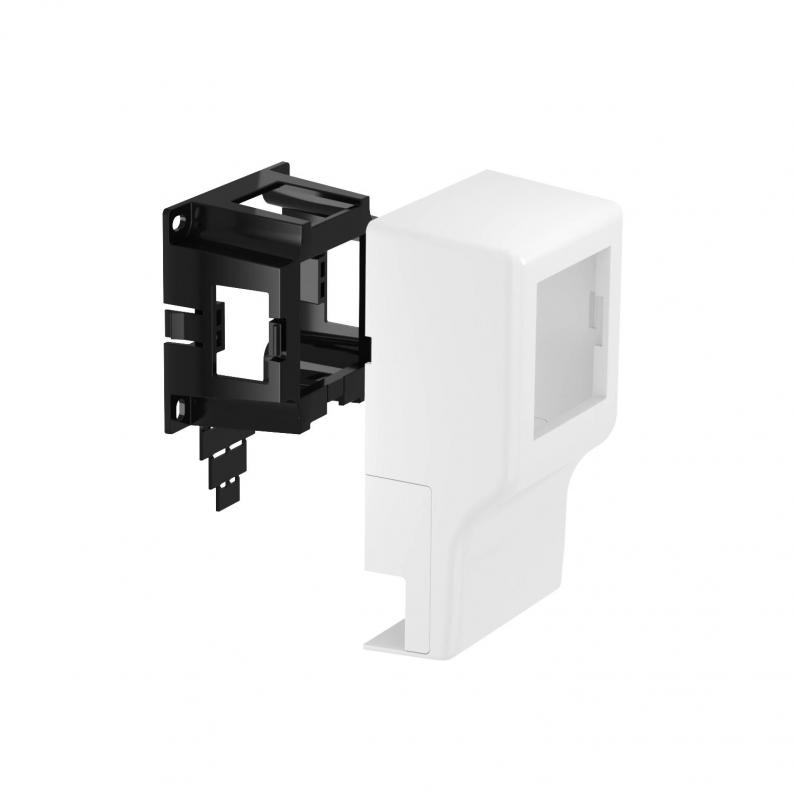

Single device support for mounting on WDK wall and ceiling trunking of the types WDK 12022, WDK 15030, WDK 15040 and WDK 20050. The device is only
suitable for accepting Modul 45 devices.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Protection ratingIP30
Protection rating IK codeIK04
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension74x127x47
MaterialPolycarbonate
ColourPure white; RAL 9010
Antibacterial treatmentno

Environmental Data

0,449 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,449 kg CO2e / 1 Piece
