Drop-out plate FT

Drop-out plate FT

Type LAB 20 FT
|
Item no. 6220436
|
EAN 4012196163397
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

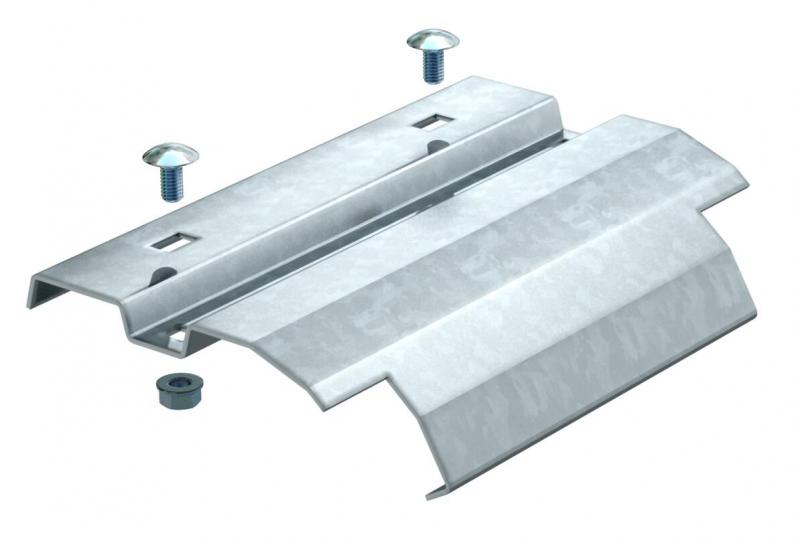

Exit plate for installation on the rung for vertically exiting cables.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

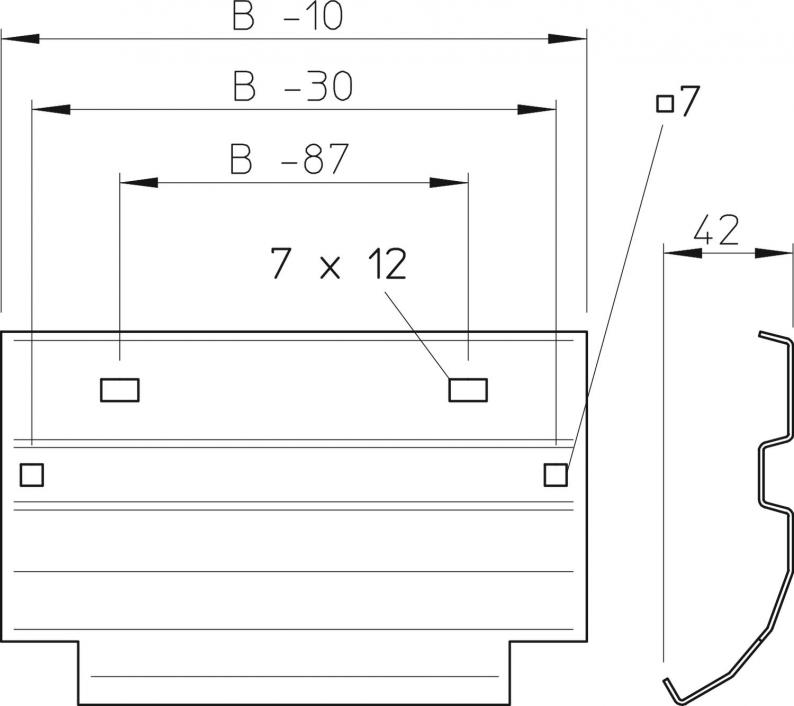

Dimensions

Width200 mm
Height45 mm
Dimension B200 mm

Technical data

Maintain electrical functionsyes
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,5 mm
DimensionB200mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

1,0801 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate1,0801 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LAB 20 FT
Item no.
6220436
Width
200
LAB 30 FT
Item no.
6220444
Width
300
LAB 40 FT
Item no.
6220452
Width
400
