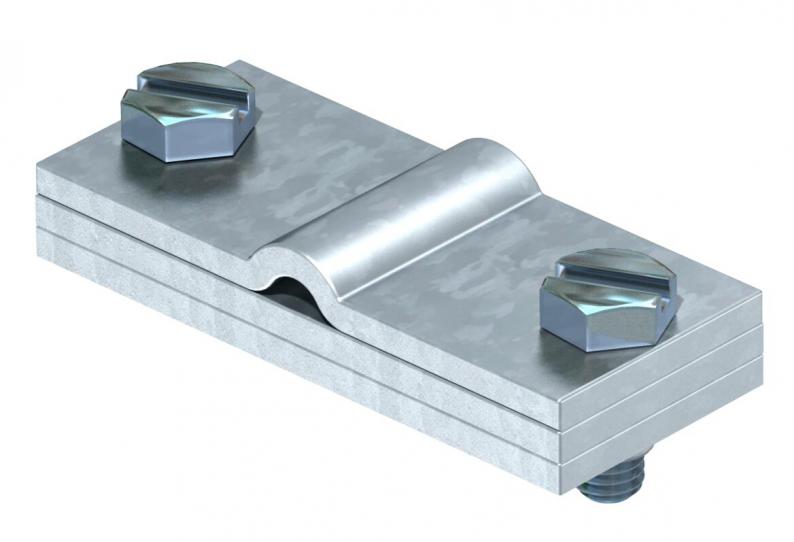

Earth connection terminal for round cable and flat conductor FT
Type 937 50
|Item no. 5043018
|EAN 4012195385998




Item no. / Type
5043018 / 937 50
Suitable for
Round conductor
Smallest selling unit: 10 piece
10piece
piece
Description

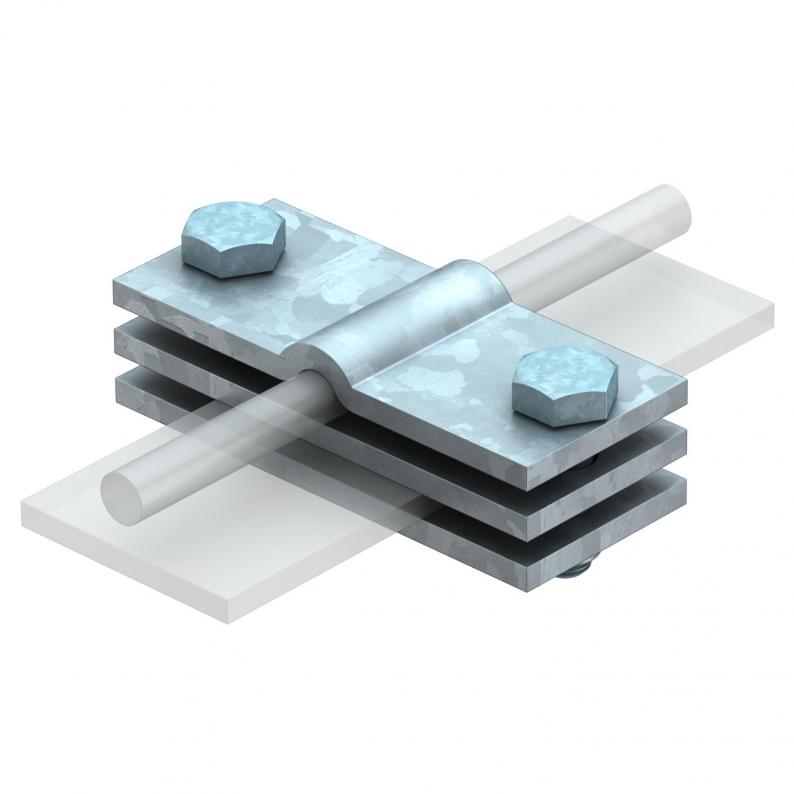

• For round and flat conductors
• Fit: cable 50 mm² x max. FL 40
• Rd 8 x max. FL 40
• With 2 hexagonal bolts M6 x 20 (F)
• Fit: cable 50 mm² x max. FL 40
• Rd 8 x max. FL 40
• With 2 hexagonal bolts M6 x 20 (F)
Technical data
Technical data
| Suitable for | Round conductor |
|---|---|

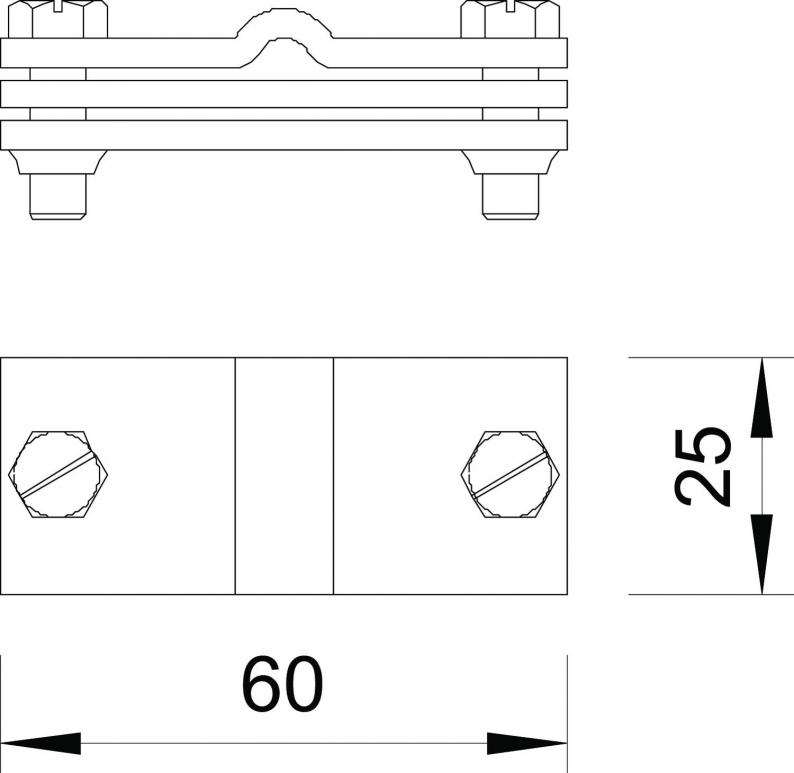

| Boyut | 60mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging without plastic | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,2664 kg CO2e / 1 Piece |
|---|
