Earthing pipe clamp for EX Zone 1/21, 2/22

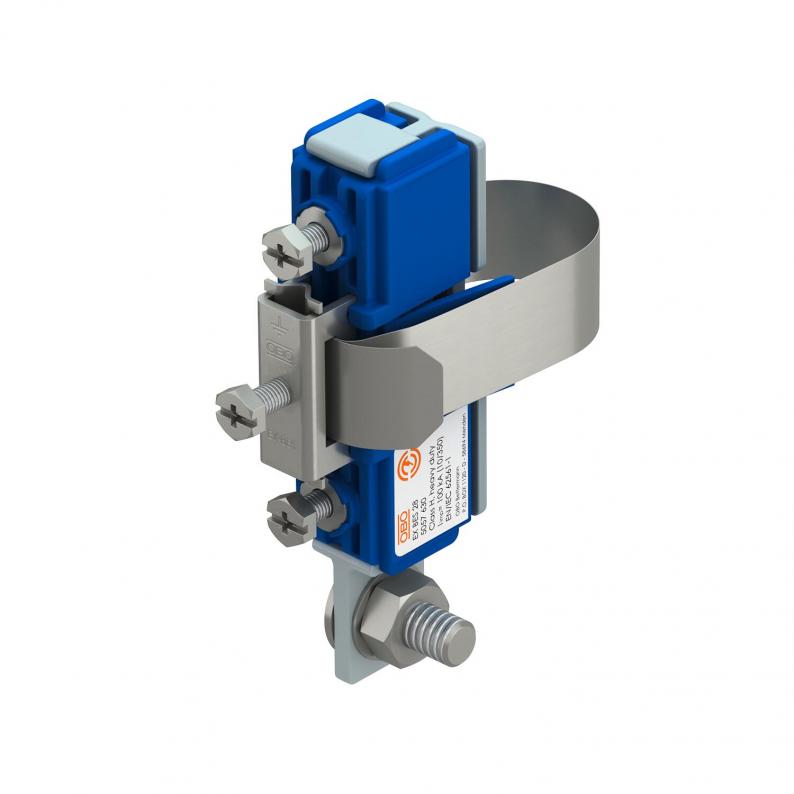

Earthing pipe clamp for EX Zone 1/21, 2/22

Type EX BES 28
|
Item no. 5057630
|
EAN 4012196672813
Show all variants
Item no. / Type
Dimension L

Smallest selling unit: 1 piece

piece

Description

For ignition spark-free protection/functional equipotential bonding according to DIN VDE 0100-410/-540 and ignition spark-free lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305) in systems according to VDE 0165-1 (IEC/EN 60079-14).


• For pipes of 6–500 mm external diameter

• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22

• Tested according to explosion group IIC

• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)

• UV-resistant and halogen-free plastic hood

• Secured with bolts against self-loosening to VDE 0185-305-3, Supplementary Sheet 2

• Suitable for indoor and outdoor applications
  • Yıldırım akımı test edilip onaylandı
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Boru çapı min.6 mm
Boru çapı maks.28 mm
Number of conductors2
Cross-section of cable to be connected, min.16 mm²
Cross-section of cable to be connected, max.78 mm²
Lightning current carrying capacityH/100 kA
Boyut28mm

Dimensions

Dimension L215 mm

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya1,9879 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Dimension L
EX BES 28
Item no.
5057630
Dimension L
215
EX BES 300
Item no.
5057640
Dimension L
1170
EX BES 500
Item no.
5057645
Dimension L
1800
