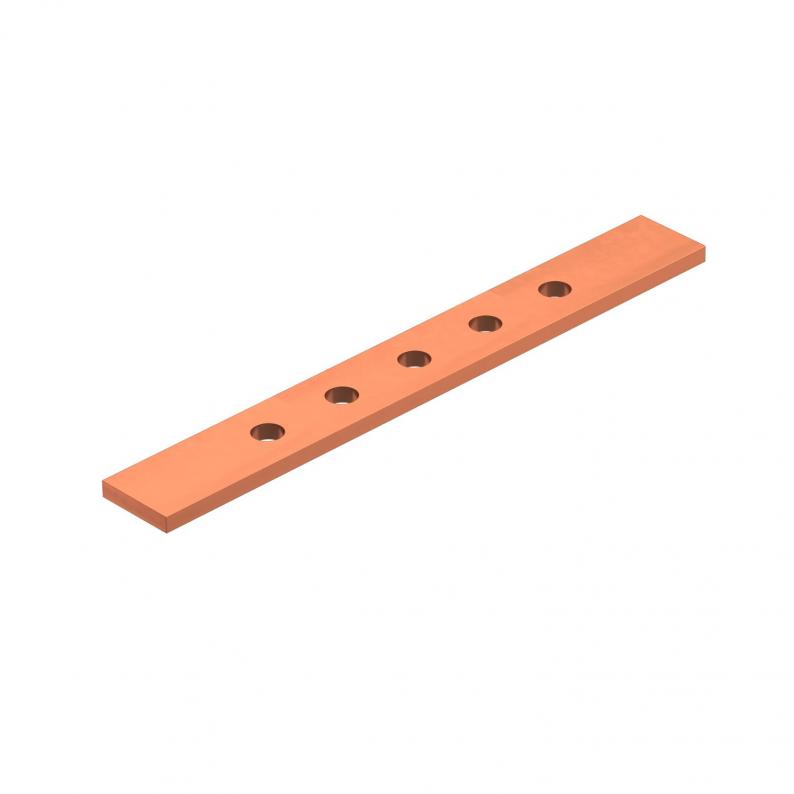

Earthing rail for UF separation point
Type 5700 PIP EB
|Item no. 5106050
|EAN 4012196439614
Item no. / Type
5106050 / 5700 PIP EB
Length
240 mm
Material
Copper
Smallest selling unit: 1 piece
1piece
piece
Description
• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm
• With 5 connection holes
• Diameter of drill hole 11 mm
Technical data

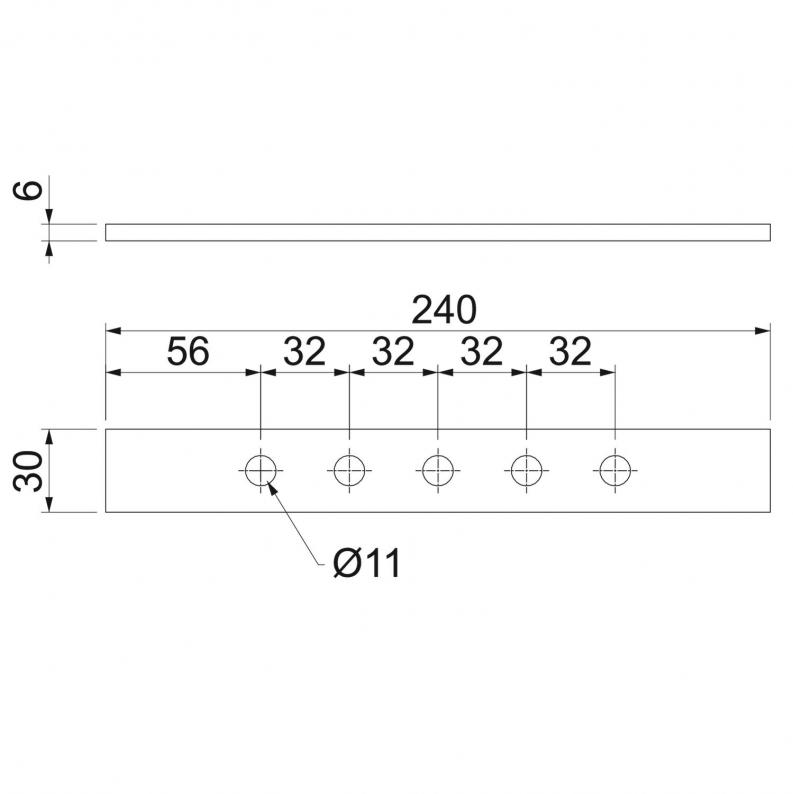

Dimensions
| Length | 240 mm |
|---|---|
| Width | 30 mm |
| Height | 6 mm |
Technical data
| Uyumluluk | M10 mm |
|---|---|
| Boyut | 240mm |
| Material | Copper |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 1,1572 kg CO2e / 1 Piece |
|---|
