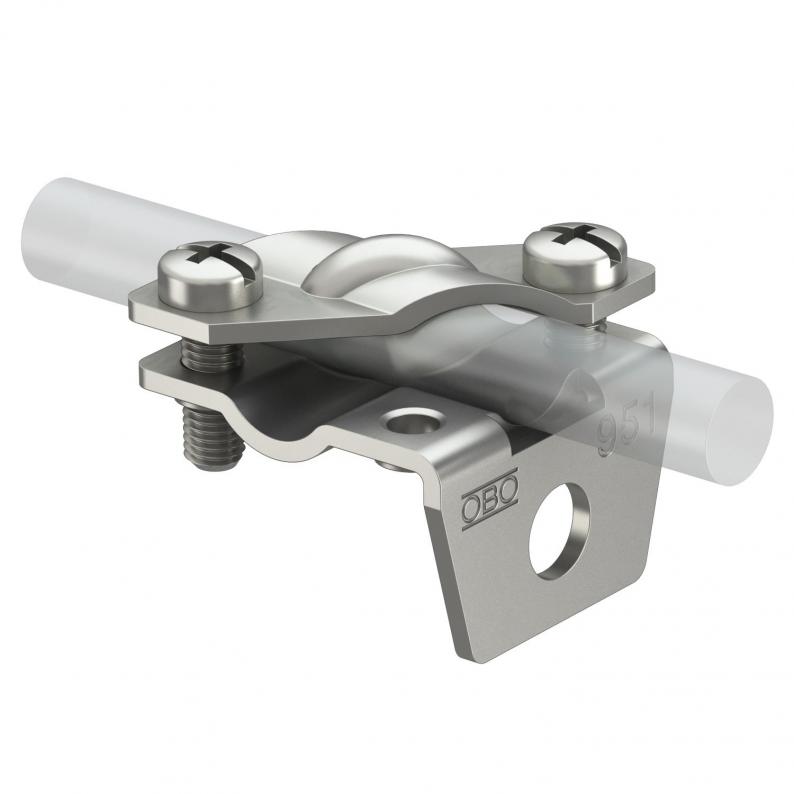

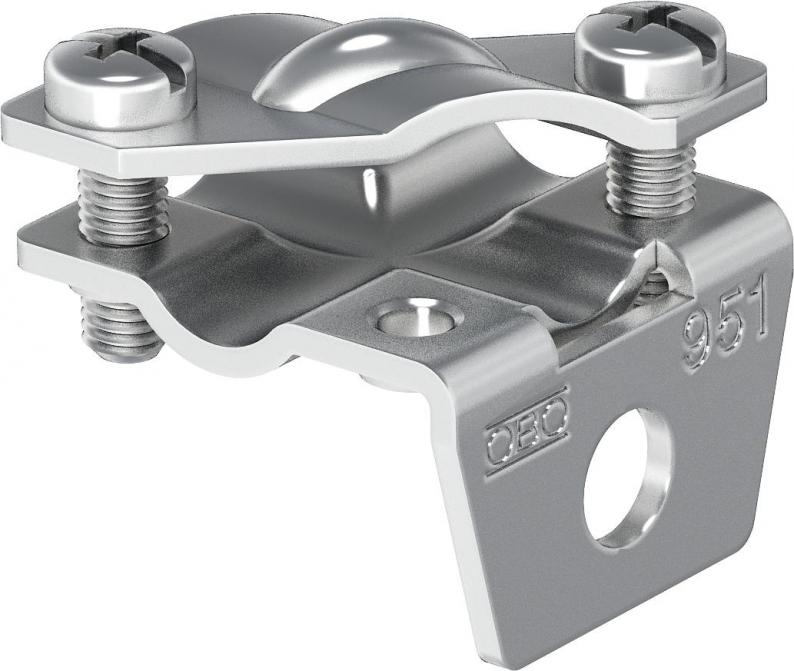

Earthing terminal type 951

Earthing terminal type 951

Type 951
|
Item no. 5051509
|
EAN 4012195386650
Show all variants
Item no. / Type
5051509 / 951
Suitable for
Round conductor

Smallest selling unit: 10 piece

piece

Description

• Longitudinal and transverse conductor routing

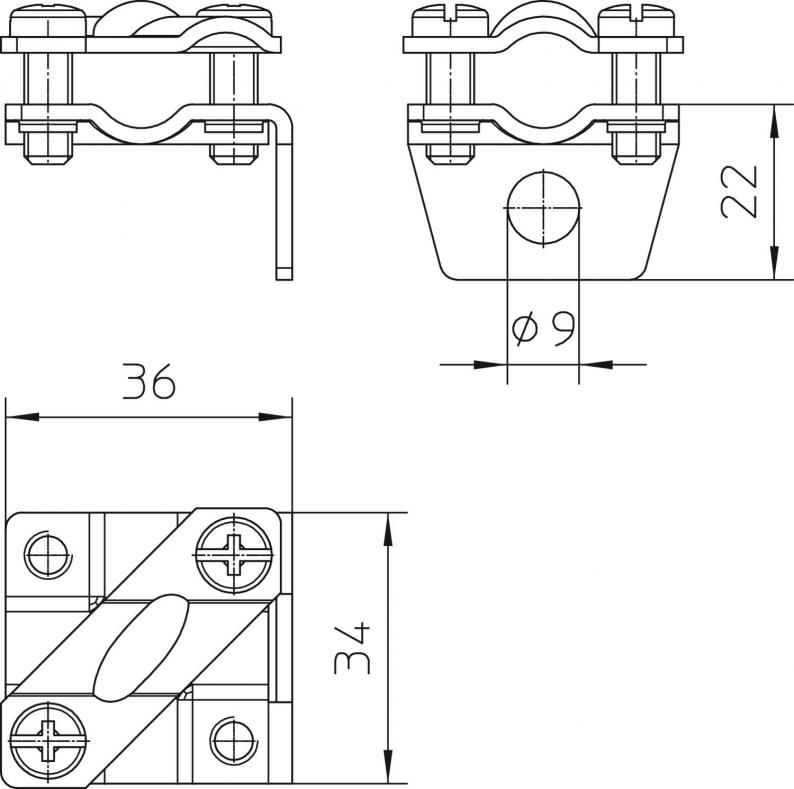

• With 1 attaching hole Ø 9 mm
• With 2 cylinder bolts M6 x 16
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Suitable forRound conductor
DimensionM6
MaterialStainless steel 1.4301

Environmental Data

0,2865 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,2865 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2865 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging without plasticyes

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

951
Item no.
5051509
Suitable for
Round conductor
