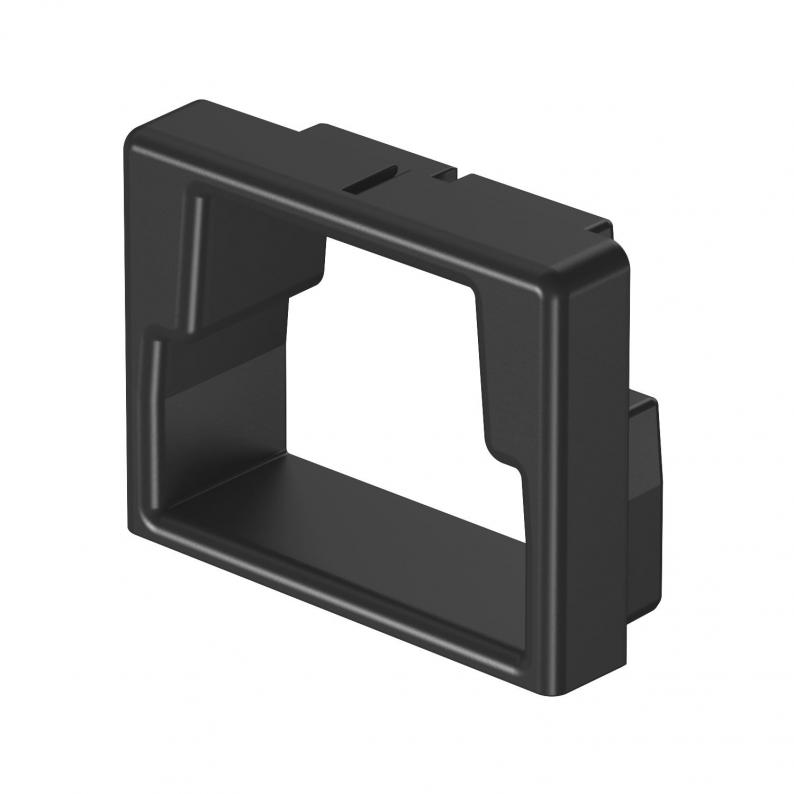

Edge protection ring KSR 20030, for LKM cable trunking type 20030
Type LKM KSR20030
|Item no. 6249744
|EAN 4012197376840
Item no. / Type
6249744 / LKM KSR20030
Smallest selling unit: 5 piece
5piece
piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data

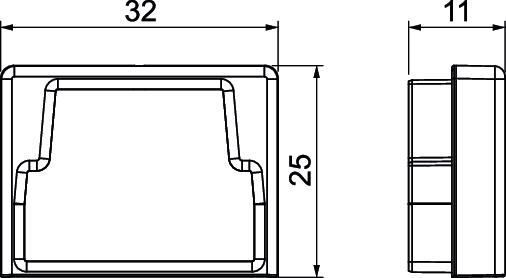

Dimensions
| Length | 11 mm |
|---|---|
| Width | 32 mm |
| Height | 25 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| Sac kalınlığı min. | 0,75 mm |
| Boyut | 20x30mm |
| Material | Thermoplastic elastomer |
| Colour | Graphite black; RAL 9011 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0131 kg CO2e / 1 Piece |
|---|
