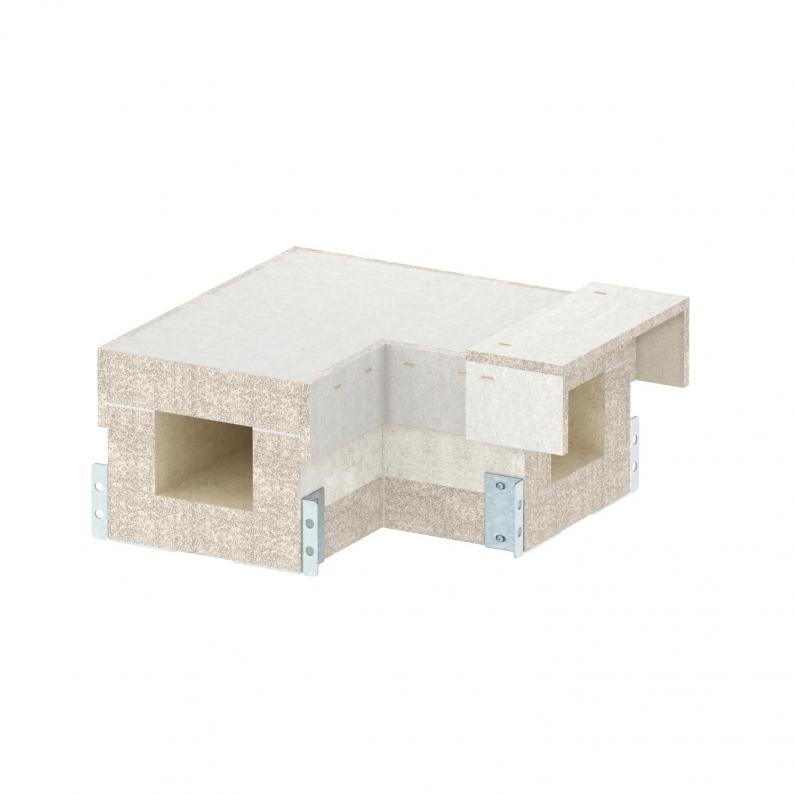

EI90 90° bend for PLCS D090810 fire protection duct

EI90 90° bend for PLCS D090810 fire protection duct

Type PLCS B090810
|
Item no. 7217890
|
EAN 4012196836703
Show all variants
Item no. / Type
Dimension L
Dimension B
Dimension H
Dimension b
Dimension h

Smallest selling unit: 1 piece

piece

Description

90° bend for PYROLINE® Con S EI90 fire protection duct, type PLCS D090810, consisting of fibreglass light concrete which is resistant to water and frost for the creation of horizontal changes of direction in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı

Technical data

Dimensions

Dimension L350 mm
Dimension B248 mm
Dimension H190 mm
Dimension b100 mm
Dimension h80 mm

Technical data

Angle of the bend90 °
Cover fasteningLoose
With perforationno
Koruma kılıfıWithout
İzolasyon malzemesi içeriğiGlass-fibre lightweight concrete
Alev alabilir taraf sayısı4
Classification EI − installation duct90
Boyut100x80
MaterialFibreglass lightweight concrete
ColourGrey

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Dimension L
Dimension B
Dimension H
Dimension b
Dimension h
PLCS B090810
Item no.
7217890
Dimension L
350
Dimension B
248
Dimension H
190
Dimension b
100
Dimension h
80
PLCS B091220
Item no.
7217894
Dimension L
450
Dimension B
348
Dimension H
230
Dimension b
200
Dimension h
120
