Empty housing X 06

Empty housing X 06

Type X06C LGR
|
Item no. 2005462
|
EAN 4012196577620
Show all variants
Item no. / Type
Clear internal dimensions
Colour

Smallest selling unit: 1 piece

piece

Description

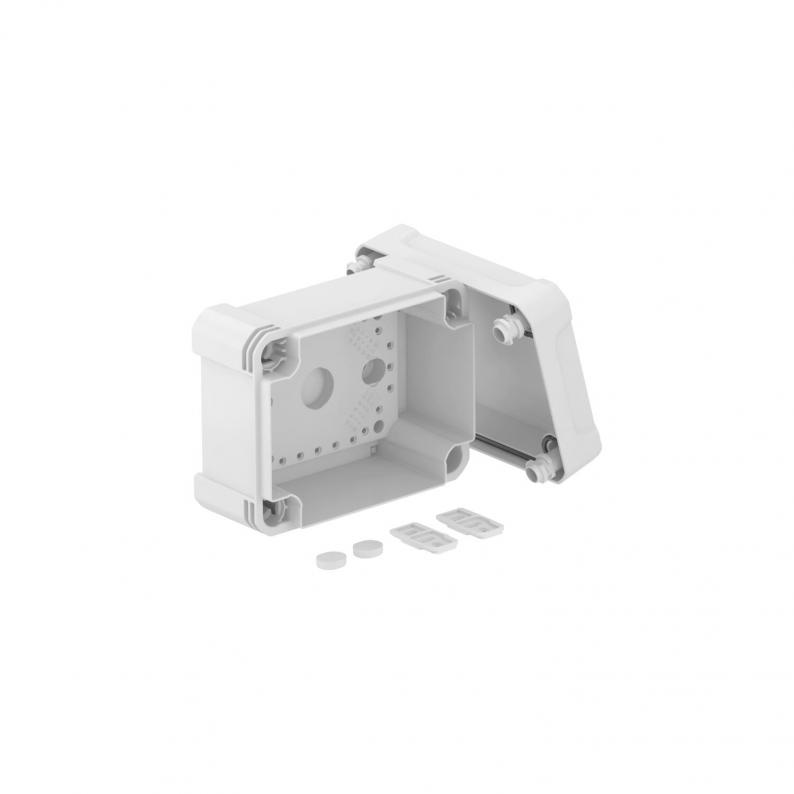

Junction box for the connection of cables and lines indoors and in outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Österreichischer Verband für Elektrotechnik, Avusturya(ÖVE)
  • Aleve dayanıklı 650°C
  • UV'YE KARŞI DİRENÇLİ
  • Halojen içermez; Klor, flüor ve brom içermez
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Koruma sınıfı IP 67
  • IK Code 09
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

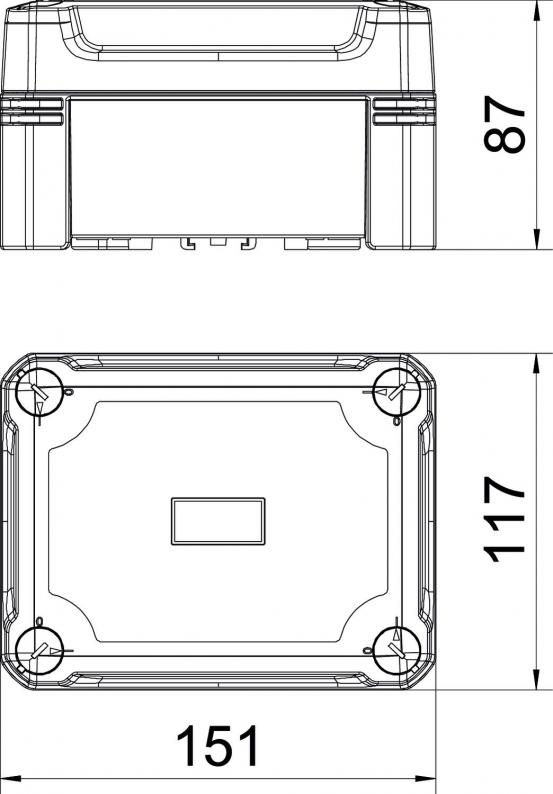

Dimensions

Length151 mm
Width117 mm
Height86 mm
Clear internal dimensions137x105x68 mm

Technical data

Koruma sınıfıIP67
Kapaklıevet
Extension optionhayır
Cover fasteningScrewed
ShapeRectangular
Weatherproofevet
Protection rating IK codeIK09
Suitable for outdoor useevet
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut150x116x86
MaterialPolycarbonate
ColourLight grey; RAL 7035

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya1,3339 kg CO2e / 1 Adet

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
X06C LGR
Item no.
2005462
Clear internal dimensions
137x105x68
Koruma sınıfı
IP67
Colour
Light grey; RAL 7035
X06C LGR-TR
Item no.
2005532
Clear internal dimensions
137x105x68
Koruma sınıfı
IP67
Colour
grey / transparent
X06C SW
Item no.
2005602
Clear internal dimensions
137x105x68
Koruma sınıfı
IP67
Colour
Graphite black; RAL 9011
