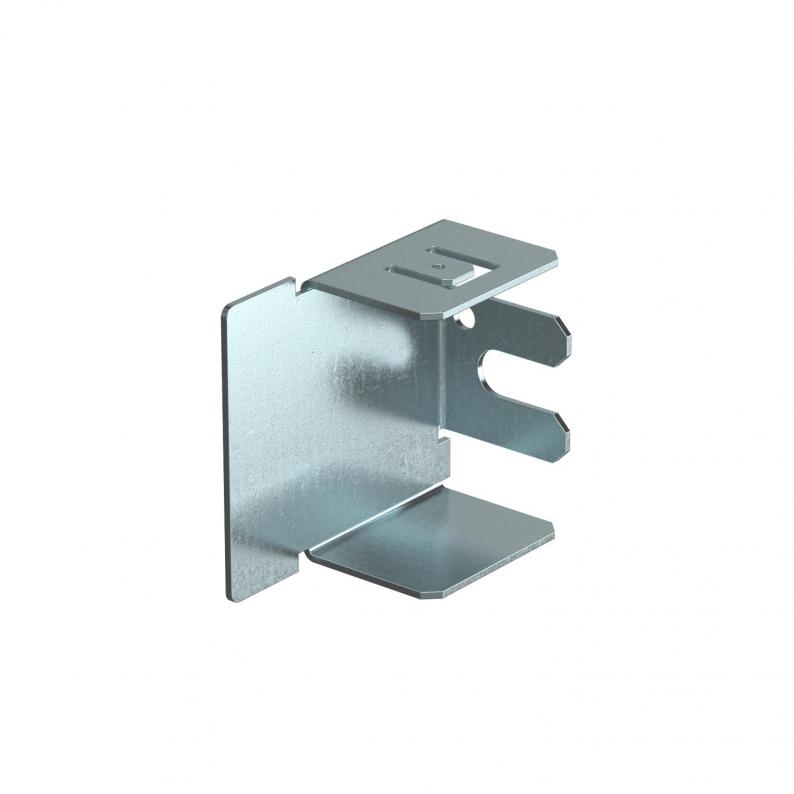

End piece, for cable trunking type LKM 40040

End piece, for cable trunking type LKM 40040

Type LKM E40040FS
|
Item no. 6247881
|
EAN 4012196652631
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length21 mm
Width40 mm
Height44 mm

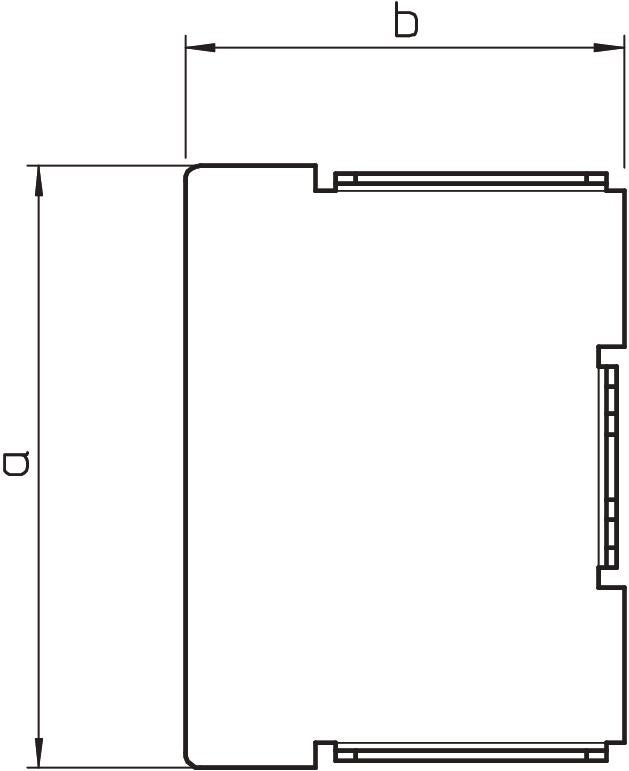

Dimension b44 mm
Dimension a40 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK10
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension40x40mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,1618 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1618 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
LKM E40040FS
Item no.
6247881
Dimension b
44
Dimension a
40
Colour
zinc
LKM E40040RW
Item no.
6249418
Dimension b
44
Dimension a
40
Colour
Pure white; RAL 9010
