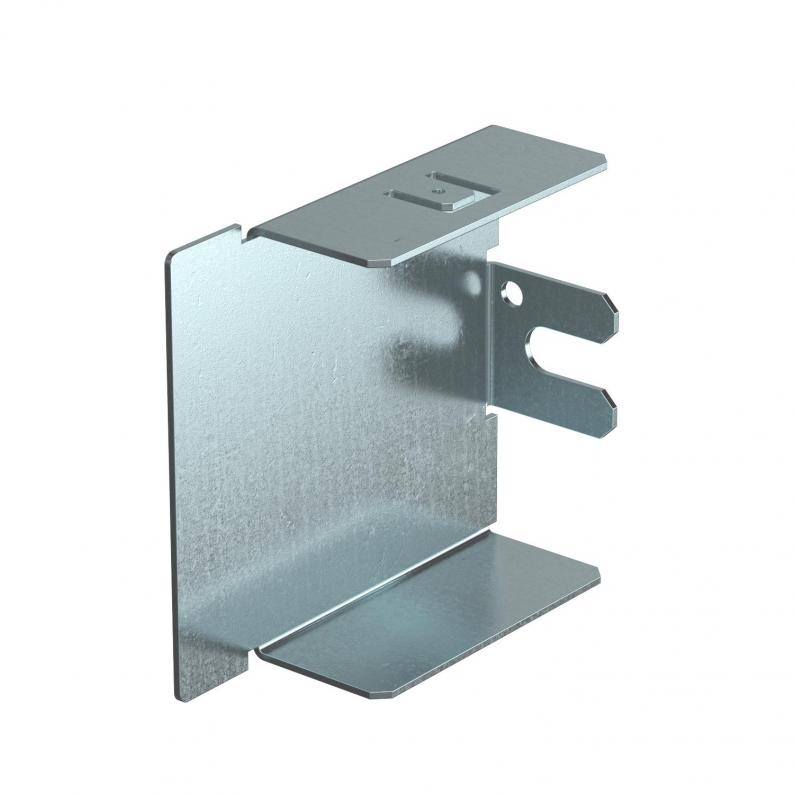

End piece, for cable trunking type LKM 60060

End piece, for cable trunking type LKM 60060

Type LKM E60060FS
|
Item no. 6248284
|
EAN 4012196503353
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece for closing the LKM ducts.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length21 mm
Width60 mm
Height64 mm

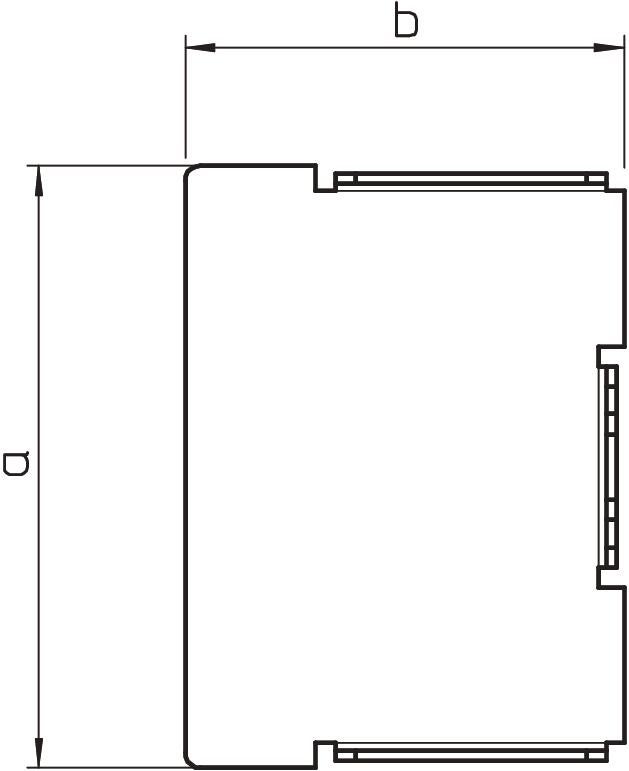

Dimension b64 mm
Dimension a60 mm

Technical data

Maintain electrical functionsno
Halojen İçermezyes
Koruyucu folyono
Koruma sınıfıIP30
Protection rating IK codeIK10
Version forLeft/right
Fastening typeLockable
Kullanılabilir sıcaklık aralığı min.-5 °C
Kullanılabilir sıcaklık aralığı maks.90 °C
Boyut60x60mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,2298 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
LKM E60060FS
Item no.
6248284
Dimension b
64
Dimension a
60
Colour
Çinko grisi
LKM E60060RW
Item no.
6249795
Dimension b
64
Dimension a
60
Colour
Pure white; RAL 9010
