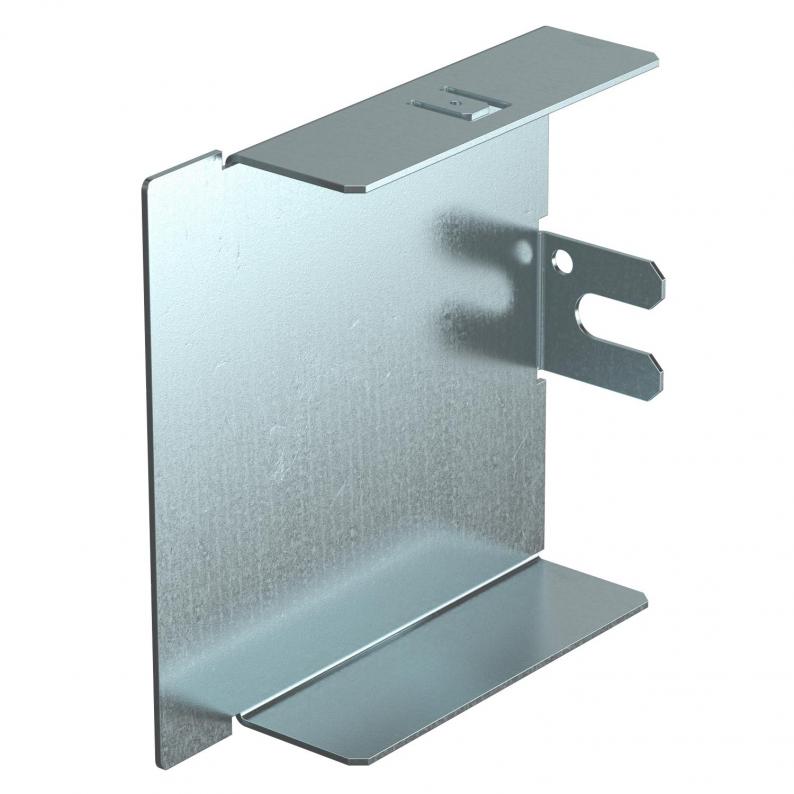

End piece, for cable trunking type LKM 80080

End piece, for cable trunking type LKM 80080

Type LKM E80080FS
|
Item no. 6248344
|
EAN 4012195699064
Show all variants
Item no. / Type
Dimension b
Dimension a
Colour

Smallest selling unit: 1 piece

piece

Description

End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length21 mm
Width80 mm
Height80 mm
Dimension b80 mm
Dimension a80 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK10
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension80x80mm
SurfaceStrip galvanised
MaterialSteel
Colourzinc

Environmental Data

0,3341 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,3341 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
LKM E80080FS
Item no.
6248344
Dimension b
80
Dimension a
80
Colour
zinc
LKM E80080RW
Item no.
6248454
Dimension b
80
Dimension a
80
Colour
Pure white; RAL 9010
